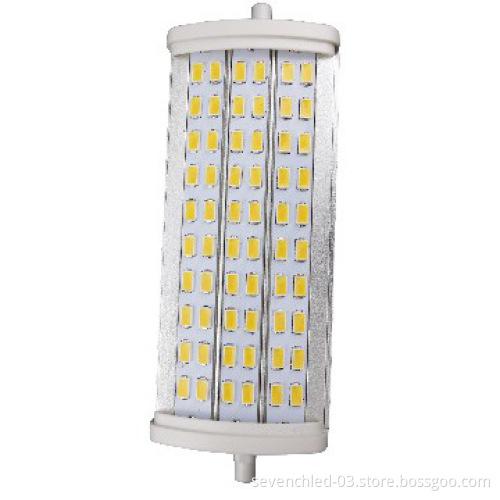

138mm Samsung SMD5630 16W LED bulb lamp ---------100%Original factory

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Power	16W
Illumination	1550lm
Base	R7S/RX7S
Power Factor	>0.95
Length	138mm
Life	50,000hrs
Lamp Base	R7S
Shape	Corn Light
Color Tones	Warm Color
Light Source Chip	SAMSUNG
Lamp Holder	RX7S
Illuminant	SMD
Material	ABS, Acrylic, Aluminum
Voltage	90-260V
Dimmable	No
Package	Yes
Power Storage or Not	No
Power	0.2w/pcs Samsung SMD5630

Detail Description

138mm Samsung SMD5630 16W LED Bulb lamp--------100%Original factory:
1)Product Parameters:
①　Electrical parameter

Voltage	86-265Vac	Power	16W
Frequency	50/60Hz	Power factor	>0.95PF
Efficiency	>86%	Show index	>80Ra
Color Temperature	2700-6500K	Protection grade	IP20
Flux	1550LM±10%	Life expectancy	50000H
Operating Temperature	-20~+65℃	Storage Temperature	-20～+80℃
Power Supply	Constant current led driver	Temperature rise	<35℃

②　Physical parameter

Lamp holder	R7S	Size	135(L)45(W)40(H)mm
Net weight	200g	Surface treatment	Anodic Oxidation
Quantity	60PCS 5630	Material quality	Aluminium
Beam Angle	180°

2)Luminous flux attenuation :

<1>.LED decay curve data in environmental temperature above 25 ℃ and 24 hours normally on after 1000 hours aging test.
<2>.LED luminous flux attenuation associated with lamps and lanterns use environment, the higher the temperature, the longer you use and the faster attenuation.
3)Photomatric data:

4)Workshop and Aging :

5) Installation instruction

6)Packing:

Inner packing size：140(L)x60(W)x43(H)mm
Outer packing size：480(L)x330(W)x350(H)mm 100PCS/Carton
22KG/Carton
7)Storage:
When product is not used, should put in packing, storage environment temperature and relative humidity should be accord with the requirement of product, there should be no corrosive gas of the warehouse or products, and no strong mechanical vibration, impact and role of strong magnetic fields. Packing should be at least 20cm high from the ground, don\'t let water immersion.

Additional Information

Payment Terms	L/C, T/T, Western Union
Minimum Order	100
Lead Time / Delivery Time	3 Day(s)
Sample Available	YES
Delivery Details	3days for samples;5-7days for above 500pcs.
FOB Port	Shenzhen
Loading Info	By express or air for small orders or samples;By sea for big orders.
Packing Info	Inner packing size:140(L)x60(W)x43(H)mm Outer packing size:480(L)x330(W)x350(H)mm 100PCS/Carton 22KG/Carton
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
