High quality P10 indoor stage LED panel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Voltage	110V

Detail Description

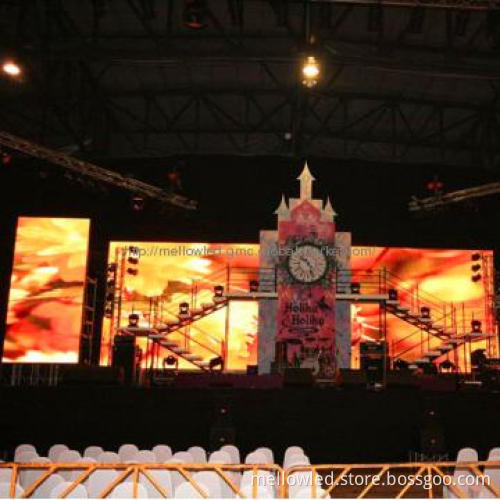

stage LED panel

About Products

Owning to company strength and abundant experience, various pixel and size LED displays with premium quality would be provided at rational price. Having the best engineer and sales team, we can promise you the satisfying products and responsible service. With a factory, we have the ability to meet you specific requirements in products and delivery. Collected by the bond of our products, we want to grow up and prosper with you together.

Product Traits

Reliant quality
Low power-consuming
Stability
Super brightness
No flicker and distortion
Rational price
Lone life-span

Specific functional traits

Multiform source file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB etc.
Information source can be from camera, video, VCD, DVD, LD, TV and so on.
High resolution with no flicker and distortion.
Brightness, contrast, saturation can be adjusted automatically and manually.
Display source information from your PC synchronously or nonsynchronously according to your order.
Advanced correcting technology to eradicate distortion.
Easy control for video and sound signal through separate interfaces.
Various language choice, such as English, France, Germany, Greek and Russian etc.

Parameter:

Pixel pitch	10mm
Pixel density	10000point /sqm
Pixel configuration	1R1G1B SMD3528
LED wavelength	R:625 -- 630nm G:520--525nm B:465--470nm
Viewing angle	140°(H)/140°(V)
Drive chip	16 constant current
cabinet dimension	960(W)960(H)X 138(T)(0.9216sqm)
cabinet resolution	96(W)X 96(H)
Module arrange	6(W)X 6(H)
cabinet structure	standard
cabinet material	Iron/aluminum
cabinet weight	40kg(Iron)/25kg(aluminum)
Cabinet cascade mode	Water proof connector
IP rate	IP30
Brightness	1200—1500Mcd/sqm
Color temperature	6300--9000
Power consumption	310(average)/690w/sqm(max)
best viewing distance	12--35m
Working voltage	88—132VAC/176—264VAC 47—63HZ
Display scale	Advise 4:3-16:9
Refresh rate	400--2000HZ
Grey scale	4096(12bit)---8192(13bit)
Frame frequency	60HZ

Additional Information

Payment Terms	T/T, L/C, Others
Minimum Order	5 sqm
Lead Time / Delivery Time	30 Day(s)
Sample Available	YES
Delivery Details	FOB ,EXW, CFR, CIF
FOB Port	Shenzhen
Loading Info	within 20-35 days after receiving the deposit
Packing Info	Seaworthy export packing or as customer\'s requirement
Target Market(s)	Africa(except Middle East), Eastern Europe, Japan & Korea, Latin America, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
