LED Sign Lights , Rope Light.The Best Substitute of LED Modules
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Working Voltage | DC05V |
|---|---|
| Rate Power | 0.15W |
| Certificate | CE and Rohs |
| Chip Brand | Epistar |
| Spe | 50pcs/chain |
| Colour | Red |
| Light Source | LED Lamp |
Detail Description

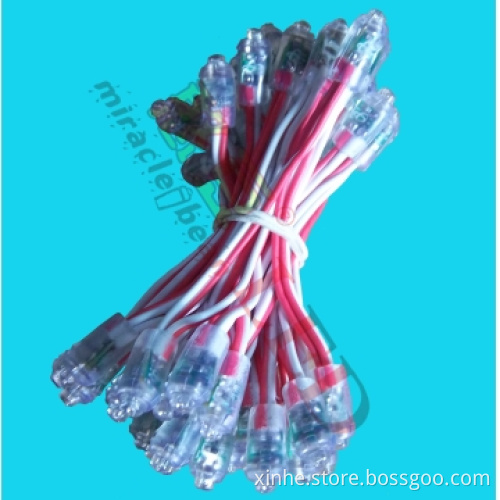

Miracle Bean 3G,used for led channel letters,led sign,led signage,led logo,the best substitute of LED Modules
- It fully exert the advantages of point light source, can be assembled freely, easy for the installation, every string LED can be divided freely.
- Its scientific water-proof treatment project makes it competent in the outdoor environment.
- Rope Light
Parameters
| Model No | Specification (pcs/string) | color | Chip spec | Size (mm) | Luminance (mcd/pcs) | Wavelength （nm） |
Driving Voltage (V) | Power (w) | Angle (º) |
RTD (ºC) |
| XH-056HC5D48AR | 50pcs | Red | 14mil | Ф9x20 | 400-600 | 620-630 | DC5V | 0.15 | 120 | 51-56 |
| XH-056HC5D48AY | 50pcs | Yellow | Ф9x20 | 400-600 | 587-592 | DC5V | 0.15 | 120 | 52-57 | |
| XH-056HC5D48AB | 50pcs | Blue | Ф9x20 | 500-700 | 465-470 | DC5V | 0.15 | 120 | 42-47 | |
| XH-056HC5D48AG | 50pcs | Green | Ф9x20 | 1000-1300 | 520-525 | DC5V | 0.15 | 120 | 43-48 | |
| XH-056HC5D48AW | 50pcs | white | Ф9x20 | 1000-1300 | DC5V | 0.15 | 120 | 41-46 |
| Size of the words | Project of light rows | |
| About 50cm words | about 350pcs/word,the distance between centers of the two holes is about 20-25mm,equipping three rows of lights | |
| About 1m words | about 550pcs/m2 , the distance between centers of the two holes is about 30-35mm,equipping three or four rows of lights | |
| About 1.5-2m words | about 450pcs/ m2, the distance between centers of the two holes is about 35-40mm. | |
| About 2m-4m words | About 350-400pcs/m2, the distance between centers of the two holes is about 35-45mm. | |
| About 4m words |
|
Additional Information
| Payment Terms | T/T, Others |
|---|---|
| Minimum Order | 1,000PCS |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | YES |
| FOB Port | Shenzhen |
| Loading Info | Express, by air, by sea |
| Packing Info | Paper box |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
