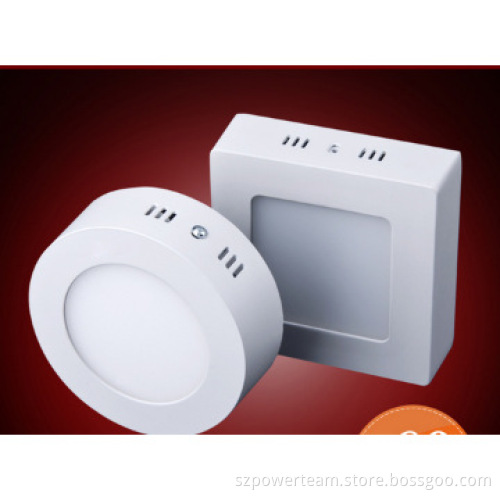

Long Lifespan 18W Round LED Panel Light

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

product name:	Round LED panel light,8W panel light
Light Source:	LED Lamp
Voltage:	220V
Material:	Aluminum, PMMA
CCT:	2700-6500K
Material	Acrylic, Aluminum, Aluminum Die Casting
Application	Airport, Bathroom, Bathroom Room, Bedroom, Car Park, Church, Cinema, Gallery, Garage, Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room

Detail Description

Basic Specification

Lumens: 600-700lm

Size: D180*H13mm(D160mm cut out)

LED Qty: 112pcs

CCT: 2700-6500K

Light Color: W/WW/R/G/B available

Light Source: LED

Voltage: 90-260V

Application: Airport, Bathroom, Bathroom Room, Bedroom, Car Park, Church, Cinema, Gallery, Garage, Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room

IP: IP21

Beam Angle: 120º

Material: Aluminum, PC

Finishing Color: Silver

Detail Description

Ultrathin 13mm 10W Round LED Panel Light With CE RoHS

Specification of 10W round LED panel light:
Power:10W
Input voltage:AC95-265V/50-60Hz
Dimmable:dimmable/non-dimmable(optional)
Frame color:silver/white(opional)
Power supply:isolated constant current LED driver

Features of 10W round LED panel light:
1.Ultra energy efficient:1W LED=2W fluoerecent=10W incandescent
2.Long lifespan more than 5 years;The lifespan of panel light is 10 times longer than grille lamp,but power consumption is only 50% of grille lamp
3.Environment and health protection:no infrared rays,no ultraviolet rediation,no thermal effect
4.Ultra slim 13mm,unlimited design and various dimensions are available
5.Soft and wide light emitting
6.Special circuit design, avoiding the single broken LED influence problem
7.High efficiency constant current drive system, with heat protection system,can work under unstable voltage
8.Instant start,no flickering,no humming,no RF interference

Installation ways of round LED panel light:
1.Lifting:At first fixed the steel wire on the ceiling,then the wire Vertical down,then fixed the panel light to the wire.
2.Ceiling mounted:At first,make some screw hole on the ceiling,Second, install the mounted box to the ceiling,fixed 3 edges.Third,slip the panel light to the fixed mounted box.Last,fixed the fourth edge by screw.
3.Embedded:First on the ceiling install sheet metal tank, then in the LED panel light back fixed a few pieces of protruding support, and then put into the panel light, make the support and the ceiling of the sheet metal tank anastomosis,then fix the panel on the ceiling

The installation attention:
1.Switch off the electrical power.
2.Connect the panel light power supply to the power (95v-265v),be sure it is stable,and no wire is naked.
3.Connect the Power supply output DC end to the light input DC end,be sure it is stable
4.Install the panel light to the reasonable place
5.Turn on the power supply,it can be used.

Application:
1. Hotel,shopping mail, office lighting
2. Hospitals lighting
3. School/colleges/universities lighting
4. Conference/meeting rooms lighting
5. Residential/institution buildings lighting
6. Factories/warehouse lighting
7. Commercial complexes lighting

Additional Information

Payment Terms	L/C, T/T, Western Union
Minimum Order	10pcs
Lead Time Delivery Time	10 days
Sample Available	Yes
Delivery Details	2-3 days for sample order,7-10 days for bulk order
FOB Port	Shenzhen
Loading Info	By express(DHL,FEDEX,UPS,EMS);By air;By sea
Packing Info	10W Round LED Panel Light per piece per inner white box;LED panel with foam protected
Target Market(s)	Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Latin America, Mainland China, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
