2013 New Produts High Power COB 10W round LED Down Light
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Colors | R/G/B/WW/W |
|---|---|
| LED type | COB 10W |
| Housing material | aluminum alloy+PC |
| usage | market place, hotel, showroom, museum and indoor |
| Material | Aluminum, PC |
| Light Source | LED |
| Voltage | 90-260V |
| Application | Hospital, Meeting Room, Museum |
Detail Description

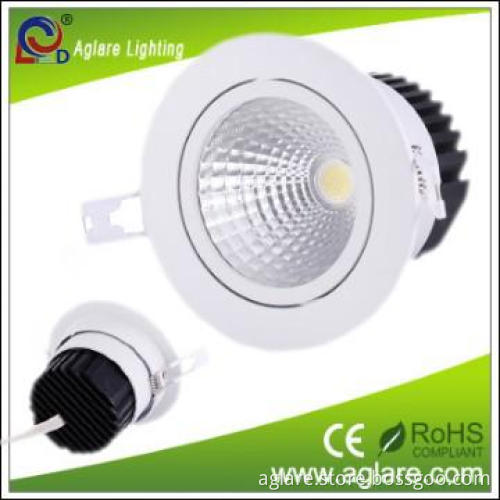

2013 New Produts High Power COB 10W LED Down Light
Description:
B-series LED ceiling downlight have 3 design with 5W,10W and15W/20W total power consumption,the sizes are 90MM,109MM and138MM.
The advantages of LED panel light are high luminous efficiency,COB LEDs(ALSO CAN BE CUSTOMIZED), 30,000 hours long lifespan,aluminum alloy&PC Housing material, solid light source and easy for transportation.
The advantage of LED light：
1. No UV-IR radiation. Green products, no harm to human beings.
2. No heavy metal material (such as mercury, cadmium), friendly to the environment.
3. Good heat output, 90% high efficiency.
4. High luminous efficiency, 30,000 hours long lifespan.
5. Solid light source. Easy for transportation.
6. Low voltage and constant current operation, safe for installation and operation, No strobe and glare light, reduce visual tiredness.
Applications：
This products widely used in market place, hotel, showroom, museum and indoor lighting place.
Product photoelectric parameters:
Description:
B-series LED ceiling downlight have 3 design with 5W,10W and15W/20W total power consumption,the sizes are 90MM,109MM and138MM.
The advantages of LED panel light are high luminous efficiency,COB LEDs(ALSO CAN BE CUSTOMIZED), 30,000 hours long lifespan,aluminum alloy&PC Housing material, solid light source and easy for transportation.
The advantage of LED light：
1. No UV-IR radiation. Green products, no harm to human beings.
2. No heavy metal material (such as mercury, cadmium), friendly to the environment.
3. Good heat output, 90% high efficiency.
4. High luminous efficiency, 30,000 hours long lifespan.
5. Solid light source. Easy for transportation.
6. Low voltage and constant current operation, safe for installation and operation, No strobe and glare light, reduce visual tiredness.
Applications：
This products widely used in market place, hotel, showroom, museum and indoor lighting place.
Product photoelectric parameters:
| Type | input voltage | PF | Output wattage | Output Luminous Flux |
beam angle |
product size (MM) |
Recommended opening size (MM) | Net weight(including driver) |
| YJ-DLB90-IW1X5 | AC90-260V | 0.9 | 5W | 311.17LM | 78° | ￠*H=90*59 | ￠=63 | 200.5g |
| YJ-DLB109-IW1X10 | AC90-260V | 0.9 | 10W | 600.23LM | 78° | ￠*H=109*78 | ￠=90 | 364g |
| YJ-DLB138-IW1X15 | AC90-260V | 0.9 | 15W | 923.31LM | 78° | ￠*H=138*83 | ￠=116 | 636g |
YJ-DLB109-IW1X10Colors：
| YJ-DLB109-IR1X10 | R | wavelength ：620-635nm | |
| YJ-DLB109-IG1X10 | G | wavelength ：515-530nm | |
| YJ-DLB109-IB1X10 | B | wavelength ：460-475nm | |
| YJ-DLB109-IY1X10 | Y | wavelength ：585-595nm | |
| YJ-DLB109-IWW1X10 | WW | Color Temperature ：3000-3500k | |
| YJ-DLB109-IW1X10 | W | Color Temperature ：6000-6500k |
YJ-DLB109-IW1X10Product size:
The product installation instructions:Embedded
Installation Notes：
1. Cut off the power supply before installation.
2. Take related electric shock protection during installation.
3. Installation should be made under above mentioned right guidance.
4. Avoid child touch.
5. Contact supplier timely if you installed products under right guidance, but lamp can\'t be lit up nor has stroboscopic phenomenon.
Cautions:
1. Suitable for indoor application. Do not use this product on outdoor or humid environment.
2. -20 to 40 ° C operation temperature. -30 to 60 ° C storage temperature. Use and store lamps under related temperature.
3. Clean the lamp surface regularly with dry cloth If the environment has dust pollution.
4. Contact supplier within warranty period if there are any failure problems.
YJ-DLB109-IW1X10Package Information:
Packages may be adjusted according to different order quantities.
More types:
Application Case:
Fair infro:
2013 Brazil trade fair:
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. product can be designed and customized as per your requirement
4.Under normal operation ,product problem will be solved by Aglare during promised time, repair or replacement.
5. Protection of your sales area, ideas of design and all your private information
Thank you for scanning our products,your feedback are highly appreciated.
Welcome to contact with us ! Welcome the travelling trader at home and abroad to cooperate wholeheartedly !
The product installation instructions:Embedded
Installation Notes：
1. Cut off the power supply before installation.
2. Take related electric shock protection during installation.
3. Installation should be made under above mentioned right guidance.
4. Avoid child touch.
5. Contact supplier timely if you installed products under right guidance, but lamp can\'t be lit up nor has stroboscopic phenomenon.
Cautions:
1. Suitable for indoor application. Do not use this product on outdoor or humid environment.
2. -20 to 40 ° C operation temperature. -30 to 60 ° C storage temperature. Use and store lamps under related temperature.
3. Clean the lamp surface regularly with dry cloth If the environment has dust pollution.
4. Contact supplier within warranty period if there are any failure problems.
YJ-DLB109-IW1X10Package Information:
Packages may be adjusted according to different order quantities.
| Net (g) | Gross (kg) |
Carton1 Size (CM) |
Carton2 Size (CM) |
Q’ty/Carton 1 |
| 364 | 13 | 12.0*12.0*8.8 | 48*48*17.6 | 32 |
Application Case:
Fair infro:
2013 Brazil trade fair:
shenzhen aglare lighting Co., LTD is going to 2013 Brazil trade fair
address: Brazil Imigrantes Exhibition Center, Sao Paulo,
Booth No:1L40
Time:September 8-10 (2013)
Our service:1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. product can be designed and customized as per your requirement
4.Under normal operation ,product problem will be solved by Aglare during promised time, repair or replacement.
5. Protection of your sales area, ideas of design and all your private information
Thank you for scanning our products,your feedback are highly appreciated.
Welcome to contact with us ! Welcome the travelling trader at home and abroad to cooperate wholeheartedly !
Additional Information
| Payment Terms | T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 200 |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | 3-5 working days for sample; 7-10 working days after payment |
| FOB Port | Shenzhen |
| Loading Info | UPS,DHL,FIDEX,AND OTHER FREIGHT FORAORDERS |
| Packing Info | CTN |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
