2012 Newest Innovative LED Panel Light 48W
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Material | Aluminum, PMMA |
|---|---|
| Application | Airport, Car Park, Church, Cinema, Hospital, Hotel, Meeting Room, Office, Restaurant, School, Shopping Mall |
| Light Source | LED |
| Voltage | 220V |
Detail Description

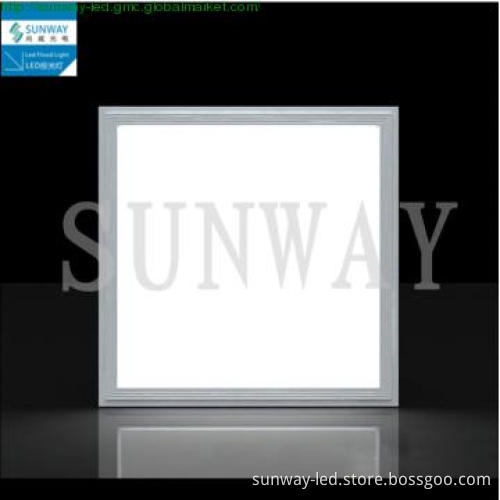

2012 Newest Innovative LED Panel Light 48W
Specification:Module No.:SW-P66-48W
| Light source | SMD3014 led(440pcs) |
| Luminous Flux | 3000-3300lm |
| CCT | 2700-3500K,6000-6500K, |
| Color | White,Warm White |
| Consumption power | 48W |
| Input voltage | AC85-265V |
| Color rendering index | >80Ra |
| Material | Aluminum frame edge with LGP(PMMA) |
| Light efficiency | >80% |
| Electrical source efficiency | >95% |
| Power factor | 0.95 |
| Working temperature | -20-+50degree |
| Output voltage | DC30-40 |
| Beam angle | 120 degree |
| Life span | >50,000hours |
| Size | 600*600*12.5mm |
| Frame width | 18mm |
| Installation ways | built-in installation, suspended, Mounted |
| Operating time(hours) | Lumen decrease(%) |
| 5,000 | 2.4 |
| 10,000 | 5.2 |
| 20,000 | 11.3 |
| 50,000 | 24.5 |
Advantage
1. Ultra-slim, fashion design.
2. Adopt high lumen SMD LEDs as light source.
3. PC cover for soft, conformity light output
4. Easy for installation, ceiling or wall surface-mounted
5. Long lifespan: 50,000hours
6. Dimmable by remote controller
7. Saving energy: saving 80 percent than fluorescent lamps
8. High stability and low ripple improves the LED lamp\'s light efficiency
9. PSU protected from over-load, over-voltage, over-current and over-heat protection
90 hours aging test before shipping:
Connecting diagram of led panel light:
Installation of led panel light:
Trade Terms (LED PANEL LIGHT)
1. Delivery Time: 7 days after receipt of payment
2. Shipping Port: Shenzhen
3. Payment method available: T/T, L/C, Western Union, etc.
4. OEM and ODM available
Application:
1. Hotels
2. Conference / Meeting rooms
3. Factories & Offices
4. Commercial Purposes.
5. Residential / Institution Buildings
6. Schools, Colleges & Universities
7. Hospitals
8.Places where energy saving and high color rendering index lighting are needed
Our service:
1.Your inquiry will be replied in 24 hours
2. OEM&ODM, or unique customized lights can be designed and produced by
3. We will always try our best to meet different requirements from you.
Additional Information
| Payment Terms | L/C, T/T, Western Union, Money Order, Paypal, Others |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | After receive the 100% T/T payment |
| FOB Port | Shenzhen |
| Loading Info | Shipped by express or air or sea as negoiated |
| Packing Info | The rigid long shape paper case with some soft thing in it to protect the products or pack it as your special requirements! |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
