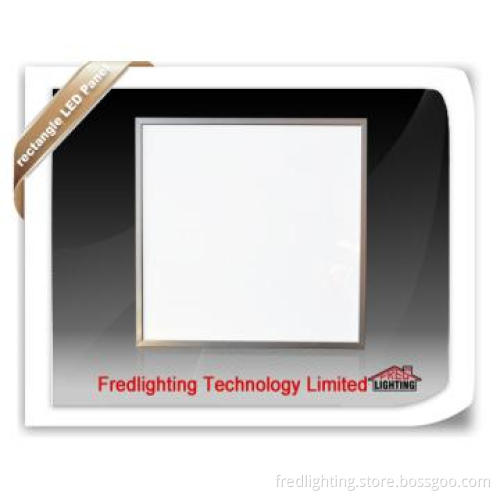

72W SMD3014 panel light 620*620*12mm CE&RoHS approved

72W SMD3014 panel light 620*620*12mm CE&RoHS approved

72W 595X595X12mmPanel Light Features:

1.  Dimension:620×620×12mm
2.  Emitting color:White,RED/GREEN/BLUE/YELLOW AVAILABLE
3.  High bright SMD3014 LED 4SIDE
4.  Working voltage:100-240VAC 5000-6000 lm
5.  Power:72W
6.  Certifcation:CE and RoHS

Energy saving, save up to 70-80% power than fluorescent tubes.
Ultra-slim, only 12mm thickness.
Refined workmanship with good corner seam joint.
Excellent thermal management and refined aluminum, lengthen the life span of panel light.
Long life span, more than 50000hours.
Good lighting consistency, no dark spot.


Panel light NO.	Brand	Quantity	Power	Lumen	Beam Angle	Work Voltage	Work Temperature	Color
FD-PL620X620PW4-F	SMD3014	756pcs	72W	4500-6000lm	120°	24VDC	-20~50℃	WW/CW/PW

Panel light application:
Hotels.
Conference / Meeting rooms.
Factories & Offices.
Commercial Purposes.
Residential / Institution Buildings.
Schools, Colleges & Universities.
Supermarket Lighting.



Installation:
This product should be installed by trained electricians.
Check integrality of the products when unpack the packing.
The distance between the panel light and any flammable materials must not be less than 0.2m.
The distance between the upper part of the installed light and the ceiling must not be less than 2cm.
Make sure the working voltage of the panel is 24VDC.
Please read and follow up the installation drawing carefully before the installation
