LED Tube Light 600mm SMD3528 LED Tube Light in Future Lighting
  • LED Tube Light 600mm SMD3528 LED Tube Light in Future Lighting
LED Tube Light 600mm SMD3528 LED Tube Light in Future Lighting

LED Tube Light 600mm SMD3528 LED Tube Light in Future Lighting

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

power factor >92%
life span 50000 hrs
warranty 2-3 years
certification CE,ROHS
efficiency >95%
Life 50,000 hrs
Package Yes
Color Tones Warm Color
Length 60cm
Illuminant SMD
Voltage 110V
Light Source Chip CREE
Power 10 W

Detail Description

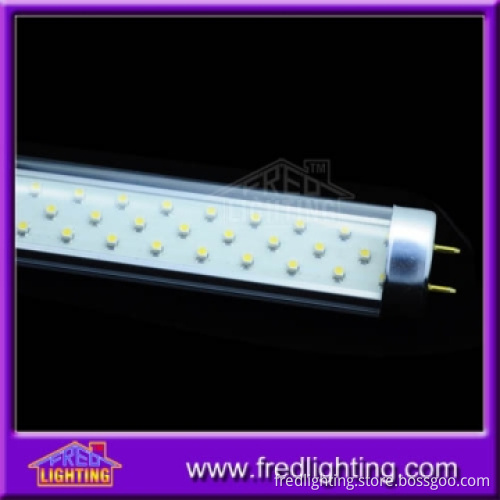

SMD3528 led tube light in future lighting
Features:

1) The LED tube use SMD3528 LED, compared with the Dip LED as most of other factory use, the viewing angle more vide, can reach to 120 degrees, also, with much lower heat emitting.
2) The cover of the Tube come with special PMMA material, the transparence can reach to 99%, and normal material just is 85%, also the cover is specially designed with diffusing reflection result, so it is not shine even staring at the lighting tube.
3) Aluminum housing not PVC as the other factory use, the aluminum housing can make sure the T8 LED tube come with a perfect heat emitting function so as to the LED in the tube can work well for long time.
3) Solid-state, high shock / vibration resistant
4) No RF interference
5) Maintenance free, easy installation
6) Long lifetime 50, 000+ hrs (5+ years)

Application of SMD T8 LED tube:
1. Operating voltage: 110-265VAC or 185-265V AC
2. Working environment: -20°C  to  40°C
3. Work without ballast.
4. Suitability: For indoor application only, Replacement for conventional fluorescent tubes

led tube parameter:

  ItemNo.

Dimension

    (MM)

 Power       LEDtype      LEDQTY

 Luminous flux   (LM)

        CCT(K)

FD-T8S-60-W

  600mm   10W SMD3528 144pcs 800-1000

6000-7000K(Pure White)

4000-5000k(Commercial White)

3000-3500k(Warm White)



FD-T8S-90-W  900mm   15W SMD3528 216pcs 1300-1500

6000-7000K(Pure White)

4000-5000k(Commercial White)

3000-3500k(Warm White)

FD-T8S-120-W 1200mm   20W SMD3528 288pcs 1700-2000

6000-7000K(Pure White)

4000-5000k(Commercial White)

3000-3500k(Warm White)

FD-T8S-150-W 1500mm   25W SMD3528 360pcs 2100-2500

6000-7000K(Pure White)

4000-5000k(Commercial White)

3000-3500k(Warm White)


Additional Information

Payment Terms T/T, Others
Minimum Order 100
Lead Time / Delivery Time 15 Day(s)
Sample Available YES
Delivery Details 2-15 days after receipt payment
FOB Port Shenzhen
Loading Info by air or by sea
Packing Info packed in small carton
Target Market(s) North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
