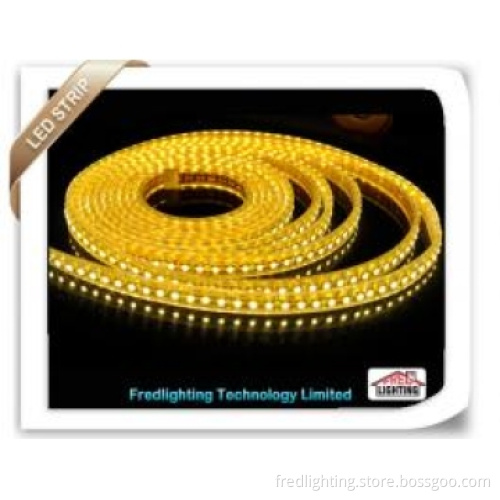

SMD3528 Waterproof LED LED Strip Lights

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Voltage	12VDC
LED Type	SMD3528
LED Quantity	60leds/meter
Power	4.8W/meter
Work Voltage	12VDC
Voltage	12V
Colour	Yellow
Light Source	LED

Detail Description

FD-LR3528XP60T-S
Production descriptions:

1 Rated IP67
2 Color:R,G,B,Y,W
3 60pcs/meter,4.8W/meter
4 5meter/reel.Every strip was put into Static bags.Then package into carton.
5 Certification: CE ,RoHS

features:

Avaliable in lengths from0.5 meter to 5 meters.It may be cut every 5 centimeters
PCB material:Flexible copper.(black,golden,white)
lifetime:50,000hours
color:R,G,B,Y,W
workvoltage:12VDC(24VDCavailable)
work temperature:-40-50°
humidit：0%~95% relative humidity

Product parameters:

Part No.	IP Rate	Type	Qty	Power	Beam Angle	Work Voltage	Work Temperature	color	package
FD-LR3528XP60T-S	IP67	SMD3528	60pcs/meter	4.8W/meter	120°	12VDC	-40-50°	R,G,B,Y,W	5meter/reel

FD-LR3528XP60T-D SIZE:

Connection diagram:

Installation diagram:

Packing diagram:

Applications:
Widely used for indoor and outdoor.Can be glued to the wall or other objects.Such as doors, halls, corridors, inets, etc.

Additional Information

Payment Terms	L/C, T/T, Others
Minimum Order	10
Lead Time / Delivery Time	15 Day(s)
Sample Available	NO
Delivery Details	3-15days after confirmed order
FOB Port	Shenzhen
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
