4.8W/m 12VDC SMD3528 LED Strip...

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

LED Brand	Epistar
LED Source	SMD3528
LED Quantity	60pcs/m
Power	4.8W/m
PCB Color	Black / Yellow / White
Voltage	12V
Colour	White
Light Source	LED

Detail Description

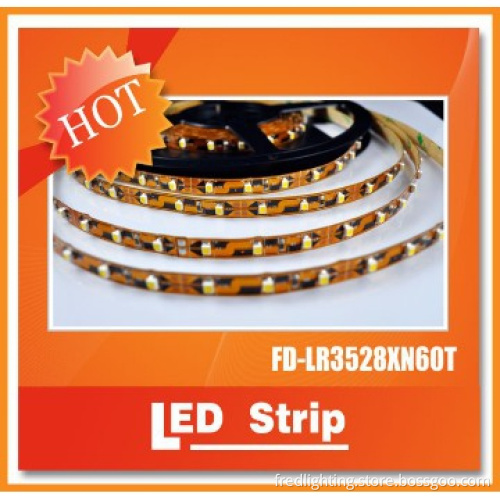

CE RoHS Approved SMD3528 Epistar 4.8W/m 12VDC Flexible LED Strip Light

Features:

1. Available in lengths from 0.5m to 5m.
2. It can be cut every 2.5 centimeters.
3. It is easy to install with 3m sticky back tape on the backside.
4. Standard length is 5 meters per reel with 10-15cm electric cable wire.
5. PCB Material: Flexible copper,PCB color is white,golden or black is available.
6. Life span: 50,000 hours.
7. Emitting color: Red, Green, Blue, Yellow, Warm white, Commercial White, Pure White.
8. Working Voltage:DC 12VDC(24VDC is available).
9. Working Temperature: -40 ~ 50 °C.
10. Ambient Humidity: 0% ~ 95% relative humidity.

Parameter:

Part NO.	Waterproof Rating	LED Type	LED Quantity	Power	Beam Angle	Work Voltage	Work Temperature	Emitting Color	Package
FD-LR3528XN60T	IP20	SMD3528	60leds/m	14.4W/m	120°	12VDC	-40-50°C	Red/Green/Blue/Yellow/White	5m/reel

Relative products parameters

Part No.	IP Rate	LED Type	LED Quantity	Power	Beam Angle	Work Voltage	Work Temperature	Emitting color	Package
FD-LR3528XP60T-D	68	SMD3528	60pcs/m	12VDC/24VDC	120°	4.8w/m	-40-50℃	Red/Green/Blue/Yellow/White	5m/reel
FD-LR3528XP120T-D	120pcs/m	9.6w/m
FD-LR5050XP30T-D	SMD5050	30pcs/m	7.2w/m
FD-LR5050XP60T-D	60pcs/m	14.4w/m
FD-LR3528XP60T-S	67	SMD3528	60pcs/m	4.8w/m
FD-LR3528XP120T-S	120pcs/m	9.6w/m
FD-LR5050XP30T-S	SMD5050	30pcs/m	7.2w/m
FD-LR5050XP60T-S	60pcs/m	14.4w/m
FD-LR3528XP60T-E	65	SMD3528	60pcs/m	4.8w/m
FD-LR3528XP120T-E	120pcs/m	9.6w/m
FD-LR5050XP30T-E	SMD5050	30pcs/m	7.2w/m
FD-LR5050XP60T-E	60pcs/m	14.4w/m
FD-LR5050QP30T-D	68	30pcs/m	7.2w/m	RGB Color Changing
FD-LR5050QP60T-D	60pcs/m	14.4w/m
FD-LR5050QP30T-S	67	30pcs/m	7.2w/m
FD-LR5050QP60T-S	60pcs/m	14.4w/m
FD-LR5050QP30T-E	65	30pcs/m	7.2w/m
FD-LR5050QP60T-E	60pcs/m	14.4w/m

Dimension :

Installation :

Application:

Flexible LED strip light can be applied for wide range of areas, indoor and outdoor. It can be sticked onto the wall and other objects, or twined round pillar or other objects, decorating door, hall, corridor, cabinet, sculpture, plants, etc. It makes surrounding more attractive and give you more suprise.

Additional Information

Payment Terms	L/C, T/T, Paypal
Minimum Order	200meters
Lead Time / Delivery Time	15 Day(s)
Sample Available	YES
Delivery Details	5 - 15 days after payment received
FOB Port	Shenzhen
Loading Info	By express or by sea
Packing Info	5 meters per reel, packed in anti-static bag and then in carton box
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
