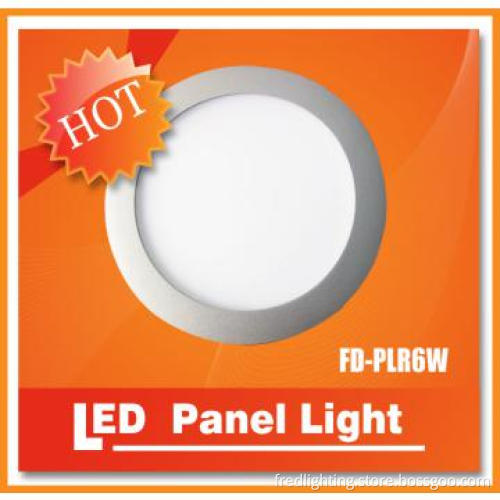

199mm 6 inch round led panel light

FD-PLR6W

Description：

1. Dimension:199x17mm
2. Lighting Area: 6 inch
3. High bright SMD3014 LED,500-600lm
4. 10W,work voltage 24VDC
5. Available color:warm white,commercial white,pure white,RGB
6. Certification:CE and RoHS

Feature:


Energy saving, save up to 70-80% power than fluorescent tubes.
Ultra-slim, only 17mm thickness.
High brightness with light weight.
Excellent thermal management and refined aluminum, lengthen the life span of led light.
Long life span, more than 5 years.
Good lighting consistency, no dark spot.
New high efficient (95%) constant current driver. which can work under unstable voltage


Dimension of FD-PLR6W:









Lux Drawing:









Relative Spectral Energy Distribution:









Light Intensity Distribution Test Report:









Installation:

This product should be installed by trained electricians.
Check integrality of the products when unpack the packing.
The distance between the light and any flammable materials must not be less than 0.2m.
The distance between the upper part of the installed light and the ceiling must not be less than 2cm.
Make sure the working voltage of the panel is 24VDC.
Please read and follow up the installation drawing carefully before the installation





Package:







Application:

Hotels.
Conference / Meeting rooms.
Factories & Offices.
Commercial Purposes.
Residential /Institution Buildings.
Schools, Colleges&Universities.
Supermarket Lighting.
