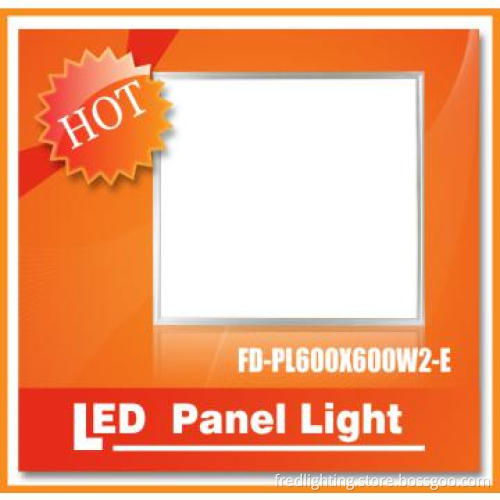

600x600mm led panel light 2 edges shine

FD-PL600X600PW2-E

Description：

1. Dimension:595x595x12mm
2. Emitting color:White,RED/GREEN/BLUE/YELLOW AVAILABLE
3. High bright SMD3014 LED,4
4. Working voltage:24VDC 2500-3000lm
5. Power:36W
6. Certifcation:CE and RoHS

Feature:

Energy saving, save up to 70-80% power than fluorescent tubes.
Ultra-slim, only 12mm thickness.
Refined workmanship with good corner seam joint.
Excellent thermal management and refined aluminum, lengthen the life span of led light.
Long life span, more than 5 years.
Good lighting consistency, no dark spot.


Parameter


Part NO.	LED Brand	LED Quantity	Power	Lumen	Beam Angle	Work Voltage	Work Temperature	Color
FD-PL600X600W2-E	SMD3014	372 pcs	36W	2232-2976lm	120°	24VDC	-20-50	WW/CW/PW









This product should be installed by trained electricians.
Check integrality of the products when unpack the packing.
The distance between the light and any flammable materials must not be less than 0.2m.
The distance between the upper part of the installed light and the ceiling must not be less than 2cm.
Make sure the working voltage of the panel is 24VDC.
Please read and follow up the installation drawing carefully before the installation.







Hotels.
Conference / Meeting rooms.
Factories & Offices.
Commercial Purposes.
Residential / Institution Buildings.
Schools, Colleges & Universities.
Supermarket Lighting.



Payment

1. Full payment must be made within 3 days after order confirmed

2.The buyer is responsible for any tax and/or duty charged by their country



Warranty and Aftersales Service

1.  All merchandise we sell are in good quality and under strict examination before they are shipped. We will try our best to avoid any quality problem

2. We promise warranty for quality in one year and we will repair it free of charge. The returning shipping should be paid by customer



Packaging & Delivery

package:1pc/innerbox,20pcs/carton or customized

Delivery time: 5-10 days



Warm Notes

1.please tell us which emitting color you want when you order our product, we will try our best to contact you to get your confirmation if you have no request, but it may lead delay on delivery.

1. As the profit margin is VERY limited, we could not affort the shipping cost for some remote place, Free shipping apply to North American, Most Europe Country listed as following

United States Of America,Belgium, Netherlandsthe, Luxembourg, Italy, Germany,France,  United Kingdom,San Marino, Austria,Denmark,Finland, Greenland,Norway,Guernsey,Portugal, Sweden, Switzerland,Spain, Greece,Jersey,Ireland, Czechrepublic,Hungary,Ploand,Romania

If Shipping destination is not on the list, or the quantity is unavailable here or you have any question, please kindly let me know.

 2. we adopt high brightness led as the light sourse with long life span, while the led brightness degradation is influenced by many environment conditions,  the normal work temperature is from -20C to 40C. if the product work beyound the condition for a long time, the life expectancy will reduce, under the extreme situation, the internal device will malfunction
