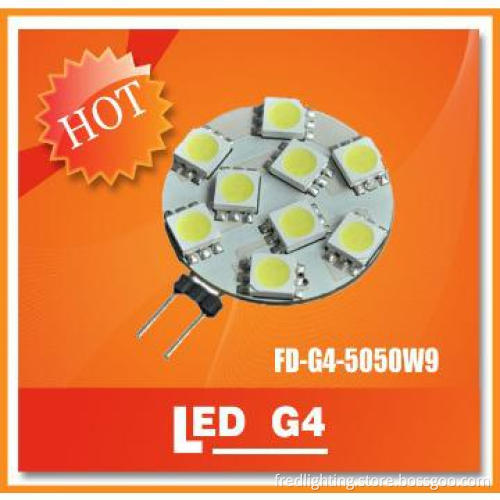

LED G4 SMD5050 9leds 1.6W 162lm

FD-G4-5050W9

Description：
1. 9 pcs high bright SMD5050
2. 1.6W 162lm,can replace 10-30W halogen bulb
3. Wide voltage,9-18VAC/9-28VDC
4. Beam angle 120 degree
5. Small size 40*30.5*8.5mm
6. CE,RoHS approved

Feature:
Base:G4
Main material:choice aluminum panel
Long life span:more than 50,000 hours.
Ideal replacement of 12VDC/VAC halogen bulb
Available:warm white, commercial white,pure white
Wide use:car bulb,ceiling light,cabinet light and so forth.


Parameter :


Part NO.	Quantity	Power	Lumen	Beam Angle	Work Voltage	Work Temperature	Emitting Color
FD-G4-5050W9	9pcs	1.6W	162 lm	120°	9-28VDC/9-18VAC	-40-50℃	WW/CW/PW

Dimension :



Package :



Application :

Under the same brightness, the power of G4  is just 16% of the Halogen JC, but the lifetime of G4 LED is 16.6 times as that of Halogen.
