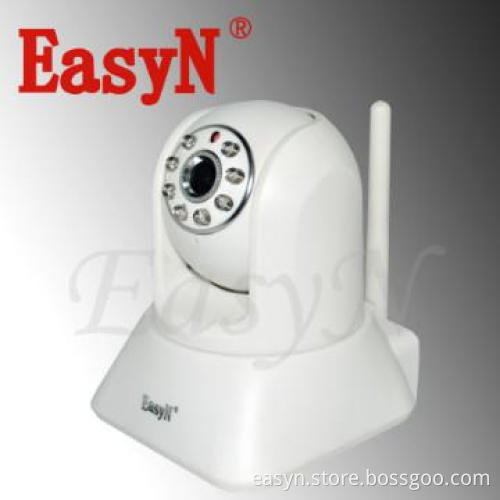

H3-187V wireless security camera
  • H3-187V wireless security camera
  • H3-187V wireless security camera
H3-187V wireless security camera
H3-187V wireless security camera

H3-187V wireless security camera

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Type Digital Camera
Style Mini Camera
Sensor CMOS
Special Features pan tilt wifi ip camera
brand brand / OEM / ODM
Style Mini Camera
Special Features Other
Type IP Camera
Image Sensor CMOS
Technology Infrared, Pan, Tilt

Detail Description

Specification:

 1. H.264,wifi, 24hours continue record
2. P2P cloud computering technology
 no need to do port forwarding
3. WPS(Wi-Fi Protected Setup) function make wireless connection easier!!!
4. easy login by ID/ password
5. iPhone/iPad/Android/ PC
6. CMOS 1.0 mega pixel
7. IR distance 10m, indoor using
8. Pan & tilt: P=355° T=90°

9. baby monitor Baby IP camera





Model Number: H3-187V

CPU

Operation system

Embedded Linux OS

Microcomputer processor

32Bit RSIC Embedded Processor

Network

Network interface

RJ45 10/100MB self-adaptable Ethernet slot

Protocol

HTTP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP

Wireless

Wifi802.11 b/g/n

IP mode

Dynamic IP address, static IP address



Online visitor

Support 5 visiter same time

Video

Compression format

H.264,M-JPEG

Image sensor

CMOS 1000,000 pixel

Lens

3.6mm

Frame rate

1~25 fps(50HZ),1~30 fps(60HZ)

Resolution

Triple stream :(1280*720)  (640*360)  (320*180)

Image adjustment

Brightness, contrast, saturation, hue

WB, BLC

Auto

LUX

0.4LUX/F2.0

SNR

>48dB

Audio

Compression format

G.711/G.726

Input

Built-in microphone 1*audio jack input

Output

Build-in speaker 1*audio jack output

PTZ

Motor

Built-in motor

Rotation angle

Horizontal:355°,vertical: 90°

Preset

8

Night-vision

Filter switch

IR cut filter auto-switch automatically, genuine color

Night-vision

8PCS Φ5 LED lights, IR distance: ,10m

Alarm

Alarm detection

Motion detection

Detection area

Support 4 detection areas

Alarm notification

Email snapshot notification, FTP snapshot upload,event record to TF card

Others

Shape material

Plastic(ABS)

Environment

indoors

Power supply

DC5V 2A

Operating temperature

-10~+50°C

Operating humidity

10%~80%

Dimension

Item size: 112x90x116mm  (L*W*H)

Package size: 200x150x120mm  (L*W*H)

Weight

Item weight:275g

Package weight:580g

Accessories

Power adapter, brief manual, screws ,bracket

System

System requirement

Microsoft Win XP,Vista ,win7,win8, IE6.0,7.0,8.0,9.0 10.0.

Certification

Certificate

ISO FCC CE  RoHS









IE view:





Installation:









Product show:









Mobile view:







Packing details:













Quick installtion Guide:





EasyN Certificate:





Warranty Terms:



EasyN provides 12 months warranty service on your product. The warranty card is an important document. You will need to present this warranty card to benefit from our warranty service.







Technical Support:



a) Customer service hotline(En): 0086-15012895482( Beijing time:  8:00 to 22:00)



b) Tech support online in website ( Beijing time:  8:00 to 22:00)



Beijing time:  8:00 to 22:00
Newyork time: 20:00 to 10:00(+1)
London time: 00:00 to 14:00







Terms & conditions:



a) Free-of -Charge maintenance period of the product is 12 months. During this time, we can repair it for free (Damages not caused by misuse or vandalism). For reparation after guarantee period, a maintenance fee will be charged.
b) During the warranty period, for breakdown caused by misuse or other reasons that are out of the range of warranty, users can repair the products by showing this card. We will only charge for components.
c) When the products need maintenance, please hand in the warranty card together with the products to the manufacture or local distributor.
d) Opening the inside of the products and tearing up the sealing label privately is out of the warranty range.
e) We do not repair the damaged item after it has been modified or added other functions.





Under the following circumstances, the maintenance will be charged:
1. Period check, maintenance or change components due to normal attrition.
2. Damages due to crash, extrusion, artificial flooding, moisture or other personal reasons.
3. Damages due to floods, fire, lightning strike and other natural calamities or force majored incidents factors
4. Repaired item by non-authorized repair centers.







Additional Information

Payment Terms L/C, T/T, Western Union
Minimum Order 2
Lead Time / Delivery Time 15 Day(s)
Sample Available YES
Delivery Details 3-5 days after payment,also based on the quantity
FOB Port Shenzhen
Packing Info Product: 280x166x225 Color box: 290x250x160
Target Market(s) Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Mainland China, Middle East, North America, Central & Southern Asia, Southeast Asia, Western & Southern Europe
