100W LED Street light /Road lighting/Epistar/Bredglux

100W LED Street light /Road lighting/Epistar/Bredglux

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Warranty	3 years
color temperature	Silver gray/Black
Dimension	640245115 mm
Lumen	9000lm
Power	100W
Power Supply	Electric Supply
Energy	Electric Supply
Application	Advertising Lighting, Architectural Lighting, Bridge, Car Park, Garden, Highway, Highway Lighting, Park, Petrol Station, Pooling Lighting, Sport Lighting, Sport Yard, Square, Square Lighting
Light Source	LED
IP	IP65
Voltage	90-260V

Detail Description

100W LED Street light /Road lighting/Epistar/Bredglux

1. Adopt high brightness COB as light source,drived by low voltage and constant current.

2. The housing made from high thermal conductive aluminium alloy,good heat dissipation,
light in weight,beautiful appearance,anti-corrosion and dust-proof.
3. Unique secondary optical integrated lens design,good light transmission,bigger beam angle,
well-proportioned illumination.
4. Adopt fin type heat dissipation method,the larger thermal area can control the light failure effectively,
which can guarantee the led street light work in efficient and reliable way,and the lifespan as well.

100W LED Street light /Road lighting/Epistar/Bredglux Product Parameters

Material	Aluminum/PC board		LED type	High power LED COB
Power	100W	Lumen	9000lm
Color index (CRI)	≥75 Ra	Color Temperature(CCT)	Cool White
Input Voltage	85~265V AC	Beam angle	120°
IP grade	IP65	Humidity	5~95% R.H.
Light failure	<3% within 3000 Hrs	Working temperature	-20~55℃
Frequency (Hz)	47 to 63 Hz	Storage temperature	-40~85℃
Power factor	≥0.95	Life span	35,000 Hrs
Warranty	3 years	Fixture color	gray
Power Efficiency	>80%	Working Lifetime	50,000 Hrs 11-12hrs/day for 12 years
Luminous Efficiency	90 lm/w

LED Street light CL2 (60W-150W)

Model	Power	Lumen (lm)	Radiator Dimension (mm)	Color
LD-RL-60W-CL2	1*60W	5400	530115250	W/WW
LD-RL-80W-CL2	1*80W	7200	530115250	W/WW
LD-RL-100W-CL2	2*50W	9000	640245115	W/WW
LD-RL-120W-CL2	2*60W	10800	640245115	W/WW
LD-RL-120W-CL2	3*40W	10800	80031090	W/WW
LD-RL-150W-CL2	3*50W	14400	80031090	W/WW

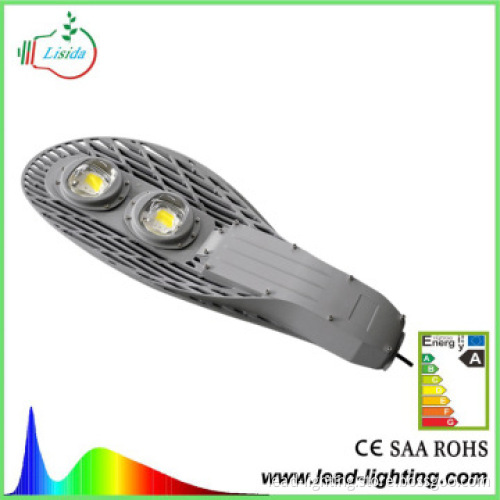

100W LED Street light /Road lighting/Epistar/Bredglux Pictures

100W LED Street light /Road lighting/Epistar/Bredglux Features
1.light body fluctuation two parts by the impact resistance high-voltage casting
2.high purity alumina reflector high strength, high temperature resistant indexing toughened glass, use silicon sealing in reflector
3.the light body surface can provide different standard
4.applicable 250W, 400w, 600W high-pressure sodium lamp, high frequency energy-saving light source
5.the rod body is made of high qualified steel plate manufacturing
6.the rod body surface treatment, galvanized polyester powder coating

100W LED Street light /Road lighting/Epistar/Bredglux technical

aluminum body, high purity aluminum reflector, protection class IP65
Galvanized coating steel bar, stainless steel fasteners, Applies illuminant 150w-400w
install height:5-12m

Color temperature choosen

1. Wide color temperature could be chosen: 2700K-7500K
2. Standard: Warm white:3000-3500K
Nature white: 4000-4500K
White: 6000K
Cool white: 6500-7000K

Package details

Dailux program free for your project

Application

Urban roads and highways, blocks, business center, industrial parks and other outdoor place

Factory information

1. Our all products will be pass at least 48-72 hours aging test

2. ISO9001:2000 arrangement system, ERP production system

3. Factory address: A5 building, luoshan industrial park, shanxia village, pinghu town, longgang district, Shenzhen China

Lead Opto-Technology attending lighting fair

Shipment
1. For sample order we will arrange the delivery from door to door, such as DHL, UPS, TNT, FEDEX, etc.
2. For container order,we will arrange the shipping by sea.
3. Your designated agent is also welcome.
If you want to check the shipping cost, please let me know your address, and also the quantity you need.

For more details, pls feel free to let us know your questions and requirements, we are 16 hours online, and the response could be very fast as you have a inquiry message on our web,
For more info: www.lead-lighting.com Thank you so much!

Contact

sales22@lead-lighting.com

Skype: sales22.lead-lighting.com

Mobile: +86 15816880495

Additional Information

Payment Terms	L/C, T/T, Others
Minimum Order	10 pcs
Lead Time / Delivery Time	7 Day(s)
Sample Available	YES
Delivery Details	30%deposit,70% balance payment before the delivery.for sample we will arrange the delivery from door to door, FOB free for your container order, CIF, DDP are available
FOB Port	Hong Kong,Shenzhen
Loading Info	Sample order we will arrange the delivery via Fedex,DHL,UPS,for container order, port to port. Airport to airport is also OK.
Packing Info	100W Street light: 2pcs per carton, inner box for each products which filled with EPE to protect the products.
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
