36W CE/GS Adapter compliance with RoHs

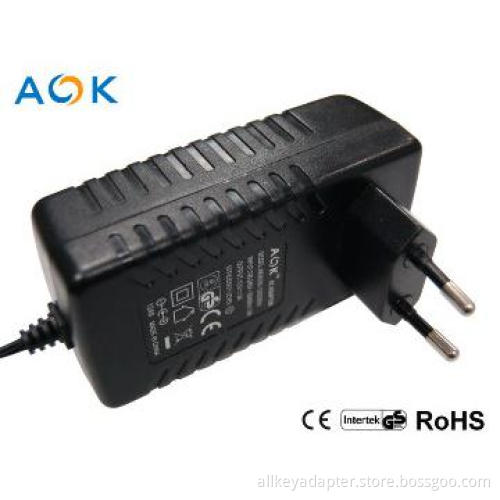

36W Series Related AC Adapter Pictures:

Adapter Certificates Obtained:

CB Report (Global): IEC60950-1/IEC60065/IEC61558-2-7

CCC Certificate (China): GB4943-2001/GB8898

GS Certificate(Europe): EN60950-1/EN60065/EN61558-2-7

CE Certificate(Europe): EN55022, 55024/55013,55020/55014-1,2

BS Certificate(Britain): BS EN60950-1/BS EN60065

ETL Certificate(North America): UL60950-1/UL60065

SAA Certificate(Australia): AS/NZS 60950.1 AS/NZS 60065

KC Certificate(Korea): K60950-1/K60065

PSE Certificate(Japan): J60950-1/J60065

Leakage Current: 0.25mA Max. at 240Vac

Voltage Withstand (Between Primary and Secondary): 3000Vac,60S, 5mA Max.

Insulation Resistance (Between Primary and Secondary): 20MΩ min at 500V DC

MTBF: over 30,000 hours @ 25 ℃ with full load according to MIL-HDBK-217F.

Power Supply Protection:

Short Circuit Protection: The power supply will recover automatically after fault removed

Over Current Protection: The power supply will recover automatically after fault current removed

Over Voltage Protection: The power supply will be shutdown when output voltage exceeds rated voltage by 150%-180%, and recover automatically after fault removed.

Adapter Environmental Specifications:

Operating Temperature: 0º C to 40 º C at maximum load

Storage Temperature: -20 º C to 85 º C

Storage Relative Humidity: 5% to 95% non-condensing

Power Adapter Immunity:

Radiation: 61000-3-2

Electrostatic Discharge: 61000-4-2

Electromagnetic Field Radiation：61000-4-3

Instantaneous Discharging：61000-4-4

Surge：61000-4-5

Conducted Interference：61000-4-6

Voltage Interruption and Variation：61000-4-11

AC/DC Adapter EMC Compliance

North American Market FCC: FCC Part 15 Class B

European Market EMC: EN55013/55022 Class B

Chinese Market: GB9254-2008/GB17625.1-2003/GB13837-2003/GB17625.1-2003

Australian Market C-TICK: CISPR13/22 Class B

36W Plug-in Adapter Package

All-Key Factory Pictures:

2. Global Safety Approvals

AllKey has obtained following safety approvals: CB, EMC, FCC, C-Tick, CE, LVD, GS, cTUVus, ETL, BS, UL, SAA, KC, PSE, CCC, Erp, MEPS etc

3.Quality assurance

Hi-pot  test  with input  90-264Vac, Function  test  with  Automatic Machine,   Test Equipment for all  finished  products.                                                                                                                                                                                                                                                                                                                                                                                                                             4.Environmental protection and energy saving

AllKey products are compliant  with RoHS,7P,REACH, PAHs, PFOS/PFOA, NP  and Efficiency  Level   with standby power less than 0.3 watts.

5.Family look

All Key products are specially designed  for modern life  to save the space of  receptacle outlet, The family looks of Power Supply make your products perform in integration.

We are working with:

All-Key Factory Pictures:

All-Key Exhibitions:Allkey Welfare Foundation:

AllKey Tourism Pictures:

Why Choose All-Key?

1.Rich Experiences to Build a Custom Adapter for your needs

a.Custom Designed Desktop Power  Supply  for  Specific Use  with Doorbell  System and POS. Below model was designed to have extremely  low  ripple. Output12Vdc with  AC power cord soldered on  the PCB

b. Custom Power Supply Designed for MADCATZ Cyborg

c.Charger was Specially Designed for Smartphone
