medical equipment voltage adapter best quality security best choice

medical equipment voltage adapter best quality security best choice

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

color	white ,black
Pcs/Carton	100PCS
Output Voltage	2.8-12v
Output Power	3.6w
OEM ODM	Available
Output Voltage	Other
Use	Car Charger, Desktop, Electric, Emergency / Portable, Other, Travel
Type	Portable
Market	For Australia/New Zealand, For Brazil, For E.U., For Italy, For UK, For USA/Canada, Other
Charge Current	1000mA

Detail Description

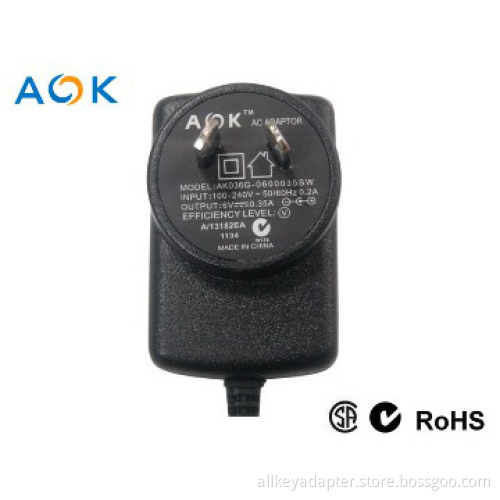

3.6w best power supplies for small appliances

Input Voltage 100-240Vac
Input Current 0.2A
Frequency 50-60Hz
Efficiency Level V
Low Standby Power 0.3W Max
Output Voltage Tolerance ±5%

Certificates Obtained:

CB Report (Global): IEC60950-1/IEC60065

CCC Certificate (China): GB4943-2001/GB8898

GS Certificate(Europe): EN60950-1/EN60065

CE Certificate(Europe): EN55022, 55024/55013,55020

BS Certificate(Britain): BS EN60950-1/BS EN60065

ETL Certificate(North America): UL60950-1/UL60065

SAA Certificate(Australia): AS/NZS 60950.1 AS/NZS 60065

KC Certificate(Korea): K60950-1/K60065

PSE Certificate(Japan): J60950-1/J60065

MODEL NO.	OUTPUT(V)	OUTPUT(A)	TPUT(W) MAX
AK036G-XXXYYYWZ	2.8-4.0	0.01-1.00	3.6W
AK036G-XXXYYYWZ	4.1-6.0	0.01-0.87	3.6W
AK036G-XXXYYYWZ	9.0-12.0	0.01-0.40	3.6W

Reliability:

Burn in: 100% full load, 40±5℃, 4 hours

Leakage Current: 0.25mA Max. at 240Vac

Voltage Withstand (Between Primary and Secondary): 3000Vac,60S, 5mA Max.

Insulation Resistance (Between Primary and Secondary): 20MΩ min at 500V DC

MTBF: over 30,000 hours @ 25 ℃ with full load according to MIL-HDBK-217F.

Protection:

Short Circuit Protection: The power supply will recover automatically after fault removed

Over Current Protection: The power supply will recover automatically after fault current removed

Over Voltage Protection: The power supply will be shutdown when output voltage exceeds rated voltage by 150%-180%, and recover automatically after fault removed.

Environmental Specifications:

Operating Temperature: 0º C to 40 º C at maximum load

Storage Temperature: -20 º C to 85 º C

Storage Relative Humidity: 5% to 95% non-condensing

Immunity:

Radiation: 61000-3-2

Electrostatic Discharge: 61000-4-2

Electromagnetic Field Radiation：61000-4-3

Instantaneous Discharging：61000-4-4

Surge：61000-4-5

Conducted Interference：61000-4-6

Voltage Interruption and Variation：61000-4-11

EMC Compliance

North American Market FCC: FCC Part 15 Class B

European Market EMC: EN55013/55022 Class B

Chinese Market: GB9254-2008/GB17625.1-2003/GB13837-2003/GB17625.1-2003

Australian Market C-TICK: CISPR13/22 Class B

3.6W Wall Plug-in Adapter Package

Model No.	N.W/pcs	Pcs/Carton	G.W/Carton	Dimension (mm)	White Box (mm)
CCC UL PSE Certified Adapter	62g	100	8.5kg	*603931*	*L85W49H64*
GS KC Certified Adapter	68g	100	9.0kg	*603944*	*L85W49H64*
BS Certified Adapter	71g	100	9.5kg	*604934*	*L85W49H64*
SAA Certified Adapter	66g	100	8.7kg	*604135*	*L85W49H64*

Additional Information

Payment Terms	T/T
Minimum Order	3000pcs (accept the samples and trial-produce orders)
Lead Time / Delivery Time	20 Day(s)
Sample Available	YES
Delivery Details	20 working days after receiving the advance payment to All-Key account
FOB Port	Shenzhen
Loading Info	Air/Ocean shipping or DHL,UPS, Fedex, TNT etc.
Packing Info	Packaged in PE bag+White box+Carton
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
