Basic Specification

Input voltage	100-240V AC
Output voltage	DC 18-25V
Output current	450mA ± 5%
Life	50,000 H
Dimmable	No
Power	12W

Detail Description

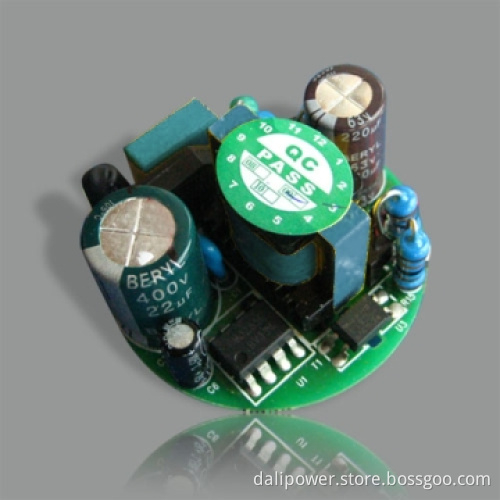

Internal for PAR Lamp Constant Current LED Isolated Driver

Features:
- AC110-220V.
- Protections: OCP and SCP
- Driving 12 pcs 1W LEDs in series
- High pressure protections:2KV
- Dielectric strength: 1.5kV AC, leakage current 5mA, 60 seconds
- Built-out Constant current LED drivers
- Low-noise and environment-friendly
- Use highly efficient, steady and low-loss switch control chip
- Burn-in test: 100% for at least 4 hours under working temperature of 40°C
- Application: Par 30 and Par 38 LED lamp.
- Technical data:
- Power: 12W
- Input voltage range: 100-240V AC
- Frequency: 50 to 60Hz
- Power factor: 0.98 (typical)
- Power efficiency: 82%
- Output voltage: 18 to 25 V DC
- Operating temperature: -40 to 65°C
- Humidity: 35 to 80% RH
- MTBF calculation: up to 50,000 hours lifetime
Mechanical specifications:
- Naked PCB or plastic housing
- Dimension Φ42mmx22mm
- Weight: 35g (for naked boards)
