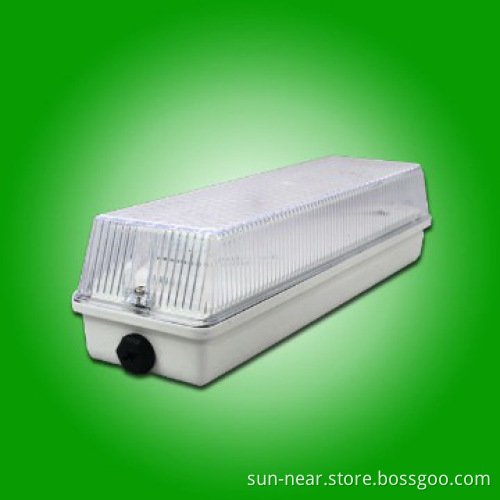

Waterproof 12W Led Emergency bulkhead
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| input voltage | 100-240V AC |
|---|---|
| power consumption | 12w |
| IP rating | IP65 |
| luminous flux | 800-1000Lm |
| CRI | 80 |
| Battery Capacity | 600mAH |
| Light Source | LED |
| Battery Type | Ni-Mh |
| Application | Airport, Bathroom, Bathroom Room, Bedroom, Car Park, Church, Cinema, Gallery, Garage, Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room |
| Voltage | 110-220V |
Detail Description
Waterproof 12W Led Emergency bulkhead
Product Features:
1 LED lighting source: green and energy saving;
2 IP65: available for both indoor and outdoor use;
3 Anti-aging cover: Polycarbonate (PC) cover;
4 Anti-glare design: no dizzy light;
5 Healthy and safe: no UV, no infrared, no other Hazardous Substances;
6 Stability: no noise, no flicker, resistance from vibration;
7 Reliable: 2 years warranty.
Electrical parameters:
Application:
-Public areas of hotel /restaurant
-Public areas of hospital
-Aisle /stair half /elevate hoistway of all kind of building
-Public areas of Local Authority building
-Circulation area in high rise council housing
-Public areas of mall/supper-market
-Parks
-Pedestrian subways in city centers
Interior structure:
Product Features:
1 LED lighting source: green and energy saving;
2 IP65: available for both indoor and outdoor use;
3 Anti-aging cover: Polycarbonate (PC) cover;
4 Anti-glare design: no dizzy light;
5 Healthy and safe: no UV, no infrared, no other Hazardous Substances;
6 Stability: no noise, no flicker, resistance from vibration;
7 Reliable: 2 years warranty.
Electrical parameters:
| Input voltage ( 50/60Hz) | AC 100-240V |
| Power consumption | 12 W |
| Power factor(PF) | >0.9 |
| LED Driver output voltage | DC 36V |
| LED Driver output current | 550mA ±25mA |
| Light source | 2835SMD LED |
| Color Temperature | 3000K /4000K /6000K (optional) |
| CRI | Ra>80 |
| Flux luminous | 800~1000Lm |
| Luminous efficacy | 87Lm /W for SN-ES2001-C-2 67.5Lm /W for SN-ES2001-E-2 80Lm /W for SN-ES2001-S-2 65Lm /W for SN-ES2001-2 |
| View angle | 110° |
| Housing material | Die-cast aluminum base , PC prismatic diffuser |
| IP Rating | IP 65 |
| Life Span | Up to 35,000 hours |
| Operation temperature | -10 deg C to 40 deg C |
| Dimension | 390*110*100mm |
| Package | 400*400*110mm |
| Net Weight | 3.05KG(approx) |
| Emergency: | |
| Type | Maintained |
| Battery(High-Temperature) | 9.6V 3.2AH Ni-MH rechargeable |
| Emergency output | 30% nominal power |
| Emergency duration | >3 Hours |
| Charge time | < 12Hours |
| LED indication | Red: charging; Green: fully charged; Yellow: battery fault or disconnected |
| Test button | AC power on: Push and hold the button to enter emergency mode; release button to come back AC power mode |
Application:
-Public areas of hotel /restaurant
-Public areas of hospital
-Aisle /stair half /elevate hoistway of all kind of building
-Public areas of Local Authority building
-Circulation area in high rise council housing
-Public areas of mall/supper-market
-Parks
-Pedestrian subways in city centers
Interior structure:
Additional Information
| Payment Terms | T/T, Western Union, Others |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | Sample order: 2-7 working daysBulk order: 15-30 working days |
| Loading Info | By air, sea or express |
| Packing Info | Independent box with waterproof plastic bag inside5pcs per carton (standard export packing) |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
