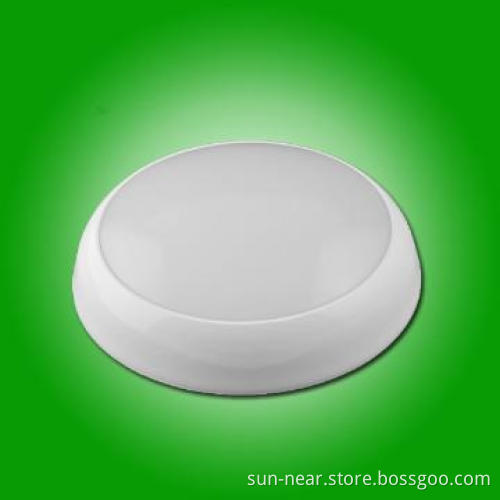

Auto switch led bulkhead with emergency function for cinema use
  • Auto switch led bulkhead with emergency function for cinema use
  • Auto switch led bulkhead with emergency function for cinema use
  • Auto switch led bulkhead with emergency function for cinema use
Auto switch led bulkhead with emergency function for cinema use
Auto switch led bulkhead with emergency function for cinema use
Auto switch led bulkhead with emergency function for cinema use

Auto switch led bulkhead with emergency function for cinema use

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

CRI >80
Housing material PC
Color Temperature 6000K
luminous intensity 650 -750Lm
power 12W
Battery Capacity 1.8AH
Light Source LED
Battery Type Ni-Mh
Application Bathroom, Hospital, Hotel, Restaurant, School
Voltage 110-220V

Detail Description

Auto switch led bulkhead with emergency function for cinema use





Application :

-Public areas of hotel /restaurant
-Public areas of hospital
-Aisle /stair half /elevate hoistway of all kind of building
-Public areas of  Local Authority building
-Circulation area in high rise council housing
-Public areas of mall/supper-market
-Parks
-Pedestrian subways in city centres



Product Features:

  •   LED lighting source: green and energy saving;
  •   IP54: available for indoor use;
  •   Anti-aging cover: Polycarbonate (PC) cover;
  •   Anti-glare design: no dizzy light;
  •   Healthy and safe: no UV, no infrared, no other Hazardous Substances;
  •   Stability: no noise, no flicker, resistance from vibration;
  •   Reliable: 2 years warranty.






Electric parameters:



Input voltage ( 50/60Hz) AC 100-240V
Power consumption 12 W
Power factor(PF) >0.9
LED Driver output voltage DC 36V
LED Driver output current 550mA ±25mA
Light source 2835SMD LED
Color Temperature 3000K /4000K /6000K (optional)
CRI Ra>80
Flux luminous 700~900Lm
Luminous efficacy 87Lm /W for SN-ES2001-C-2
67.5Lm /W for SN-ES2001-E-2
80Lm /W for SN-ES2001-S-2
65Lm /W for SN-ES2001-2
View angle 110°
Housing material PC housing , PC diffuser
IP Rating IP 65
Life Span Up to 35,000 hours
Operation temperature -10 deg C to 40 deg C
Dimension 320**99mm
Package 330*330*110mm
Net Weight 1.08KG(approx)
Emergency:
Type Maintained
Battery(High-Temperature) 9.6V 3.2AH Ni-MH rechargeable
Emergency output 30% nominal power
Emergency duration >3 Hours
Charge time < 12Hours
LED indication Red: charging; Green: fully charged; Yellow: battery fault or disconnected
Test button AC power on: Push and hold the button to enter emergency mode; release button to come back AC power mode






LED Product Advantages:




  • High efficiency and energy saving: hi-lite, wide viewing angle and wide range of working voltage. It can take place of the traditional energysaving lamps and save more than 85% energy.
  • Environment protection: no infrared and ultraviolet ray, no heating effect,no lead and mercury, in a word, without any pollution to the environment.
  • Stability and durability: with more than 5000 hours lifetime, it is not affected by radiation; the material are durable,which makes the maintenance easier and more convenient.
  •  Packing specification: each piece is packed independently and environmentally.
  •  Certification:  passed CE, ROHS certification.
  •  Quality goal: Percentage of good products is more than 98%, final and timely shipments are  more than 95%, custom complaint is less than one.





Dimension (mm):




Product Details:










Application Effect:

Additional Information

Payment Terms T/T, Western Union
Minimum Order 2
Lead Time / Delivery Time 7 Day(s)
Sample Available NO
Delivery Details Sample order: 2-7 working daysBulk order: 15-30 working days
FOB Port Shenzhen
Loading Info by air or by sea
Packing Info Independent box with waterproof plastic bag inside5pcs per carton (standard export packing)
Target Market(s) North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
