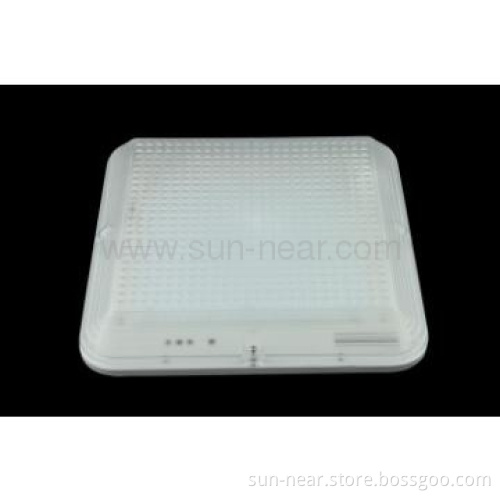

IP65 20W led lamp and light mounted on ceiling with CE,ROHS
  • IP65 20W led lamp and light mounted on ceiling with CE,ROHS
  • IP65 20W led lamp and light mounted on ceiling with CE,ROHS
IP65 20W led lamp and light mounted on ceiling with CE,ROHS
IP65 20W led lamp and light mounted on ceiling with CE,ROHS

IP65 20W led lamp and light mounted on ceiling with CE,ROHS

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Power wattage 20W
Input voltage 100-240V
IP Grade IP65
Flux 1300 -1700Lm
Certification CE, RoHS
Material Aluminum Die Casting
Style Modern
Application Airport
IP IP65
Voltage 110-220V

Detail Description

IP65 20W led lamp and light mounted on ceiling with CE,ROHS




Application :

-Public areas of hotel /restaurant
-Public areas of hospital
-Aisle /stair half /elevate hoistway of all kind of building
-Public areas of  Local Authority building
-Circulation area in high rise council housing
-Public areas of mall/supper-market
-Parks
-Pedestrian subways in city centers




Product Features:

  •   LED lighting source: green and energy saving;
  •   IP65: available for both indoor and outdoor use;
  •   Anti-aging cover: Polycarbonate (PC) cover;
  •   Anti-glare design: no dizzy light;
  •   Healthy and safe: no UV, no infrared, no other Hazardous Substances;
  •   Stability: no noise, no flicker, resistance from vibration;
  •   Reliable: 2 years warranty.




Electric parameters:
Input   voltage ( 50/60Hz) AC 100-240V
Power consumption 20 W
Power factor(PF) >0.9
LED Driver  output voltage DC  36V
LED Driver  output current 500mA  ±25mA
Light source  Epistar 3528 SMD LED 400 PCS
Color Temperature 3000K /4000K /6000K (optional)
CRI  Ra>75
Flux luminous 1300 -1700Lm
Luminous efficacy 87Lm /W for SN-ES2001-C
View angle 120°
Housing material Die-cast aluminum base , PC prismatic diffuser
IP Rating IP 65
Life Span Up to 50,000 hours
Operation temperature -20 deg C to 40 deg C
Dimension 320*320*99mm
Package 330*330*110mm
Net Weight 3.05KG(approx)


LED Product Advantages:

  • High efficiency and energy saving: hi-lite, wide viewing angle and wide range of working voltage. It can take place of the traditional energy-saving lamps and save more than 85% energy.
  • Environment protection: no infrared and ultraviolet ray, no heating effect,no lead and mercury, in a word, without any pollution to the environment.
  • Stability and durability: with more than 50,000 hours lifetime, it is not affected by radiation; the material are durable,which makes the maintenance easier and more convenient.
  •  Packing specification: each piece is packed independently and environmentally.
  •  Certification: passed CE, RoHS certification.
  •  Quality goal: Percentage of good products is more than 98%, final and timely shipments are  more       than 95%, custom complaint is less than one.




Dimension (mm):




Product Details:

emergency and sensing function customizable



(emergency and sensing function versions:)










Application Effect:






Additional Information

Payment Terms T/T, Others
Minimum Order 1 PCS
Lead Time / Delivery Time 7 Day(s)
Sample Available YES
Delivery Details The sample will be made delivery in 3~4 working days and will be in 2~3 weeks for bulk order.
FOB Port Shekou,Shenzhen
Loading Info By air or by sea.
Packing Info Independent box with waterproof plastic bag inside; 4 pcs/carton (standard export packing)
Target Market(s) Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
