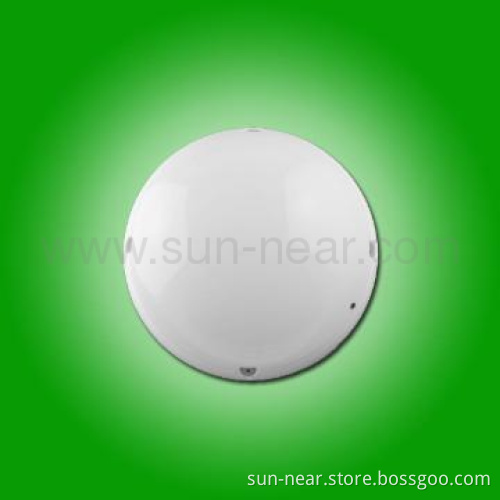

IP54 14W High quality 2D replacement led bulkhead light
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
Power consumption | 14 W |
---|---|
Light source | 5630 SMD LED |
Flux luminous | 660 -700LM |
Housing material | PC base, opal diffuser |
CCT | 3000K /4000K/ 6000K (optional) |
Application | Museum |
Voltage | 90-260V |
Style | Modern |
IP | IP54 |
Material | PC |
Detail Description
Application :
-Public areas of hotel /restaurant
-Public areas of hospital
-Aisle /stair half /elevate hoistway of all kind of building
-Public areas of Local Authority building
-Circulation area in high rise council housing
-Public areas of mall/supper-market
-Parks
-Pedestrian subways in city centres
Product Features:
- LED lighting source: green and energy saving;
- IP54: only available for indoor use;
- Anti-aging cover: Polycarbonate (PC) cover;
- Anti-glare design: no dizzy light;
- Healthy and safe: no UV, no infrared, no other Hazardous Substances;
- Stability: no noise, no flicker, resistance from vibration;
- Dimmable function: DALI, SCR, PWM, and 0-10V dimming control optional;
- Reliable: 2 years warranty.
Electric parameters:
Model no |
SN-ES14025-14W |
IP Rating |
IP54 |
Class Rating |
Class I (requires an Earth) |
Input voltage ( 50/60Hz) |
AC 110-240V |
Power consumption |
14W |
PF |
>0.9 |
LED Driver output voltage |
DC 30-40V |
LED Driver output current |
350mA |
Light source |
5630 SMD LED |
CCT |
3000K /4000K/6000K (optional) |
Flux luminous |
660 -700LM |
Housing material |
PC base,opal diffuser |
Life Span |
> 35,000 hours |
Operation temperature |
-10°C to 40°C |
Dimension |
Ø340mm*H120mm |
Package |
375*375*150mm |
Net Weight |
2.0KG |
LED Product Advantages:
- High efficiency and energy saving: hi-lite, wide viewing angle and wide range of working voltage. It can take place of the traditional energysaving lamps and save more than 85% energy.
- Environment protection: no infrared and ultraviolet ray, no heating effect,no lead and mercury, in a word, without any pollution to the environment.
- Stability and durability: with more than 5000 hours lifetime, it is not affected by radiation; the material are durable,which makes the maintenance easier and more convenient.
- Packing specification: each piece is packed independently and environmentally.
- Certification: passed CE, ROHS certification.
- Quality goal: Percentage of good products is more than 98%, final and timely shipments are more than 95%, custom complaint is less than one.
Dimension (mm):
Product Details:
Additional Information
Payment Terms | T/T, Western Union |
---|---|
Minimum Order | 1 pcs |
Lead Time / Delivery Time | 10 Day(s) |
Sample Available | YES |
Delivery Details | 3~7 working days for sample; 10~30 working days for bulk. |
FOB Port | Shenzhen |
Loading Info | By sea or by air. |
Packing Info | Independent package: 375*375*150mm (with independent plastic bag inside)Ctn: 785*390*400 mm (5pcs/ ctn). |
Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
