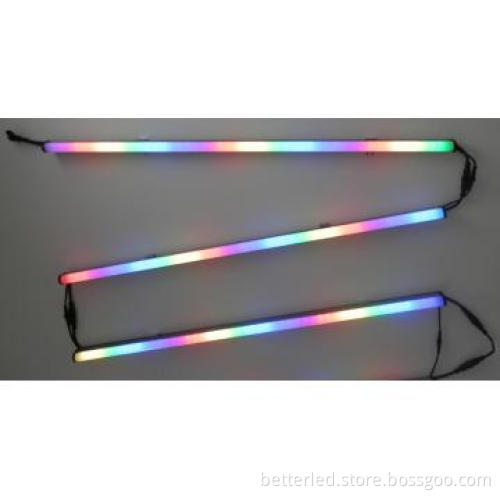

Independent development 5050 48leds/m magic rigid bar

Item No.:BE-GF50M48-A291
Size：L1010mm*W26mm*H40mm
Production feature:
● Professional Optical design make it has a better optical efficiency;
● Scientifically design shell, structure and appearance is very good;
● World-class LED chip, performance is more stable;
● Own research and development electrical technology program, so product performance is excellent;
● Adopt injected silicone inner shell structure and double waterproof schemes, it is perfect for professional thermal design and scientific waterproof.
● Installation is simple and convenient.
Application:
● Building outline lighting;
● Architectural ensemble flash effect;
● Building overall advertising lighting effect;
Dimension:
● 1010mm*26mm waterproof IP67 LED rigid bar, each light bar with 48pcs 5050RGB LED;● Color effects：Chasing, running water, full color, pattern, video playback;
● working voltage：DC 24V；
● working Current：350-820mA；
● Adopt the dual-core design circuit;
● LED beam angle：120 degree。




Basic parameter:

Item	No.	Absolute Maximum rate	Unit
Forward Current	IF	820	MA
Power	PD	9.6	W
Electrostatic discharge	ESD	800	V
Working Temperature	Topr	-25~ +45	°C
Storage Temperature	Tstg	-40~ +80	°C
Life time		20000	hr

Electrical/Optical Characteristics At TA=25°C

Item No.	Color	LED Qty	Working current	wave/CCT	Package
BE-GF50M48-A291	Red	48	350-820mA	625-630nm	Antistatic packing
Blue	48	350-820mA	465-470nm
Green	48	350-820mA	515-520nm

Note：

• Tolerance of measurement of luminous intensity±15%;
• The light source can be selected to US Cree or Taiwan Epistar chip.


Cover
● Adopt imported high-quality PC material, excellent quality. It is the optical materials which used to replace metal and other alloys;
● Have excellent light transmission and LED light source diffusion technique, can make the light effect more soft and uniform;
● Suitable for all colors, according to the LED color temperature to adjust the light transmission rate；
● Extremely tough and the surface is more than smooth(commonly known as bullet-proof glass), excellent anti-scratch resistance;
● Compare with other engineering materials with better resistance to weathering and aging, long-term withstand outdoor UV damage and temperature change.


Shell
● Adopt high quality aluminum material, to ensure the product has excellent cooling capacity, and minimize the light attenuation;
● Heavy aluminum case overall design(weighs up to 495g) to ensure the stability of the structure of the production;
● Aluminum shell surface silver electric dyeing has good antioxidant capacity, while keep fine for appearance;
● Adopt H-type mechanical structure, wiring from the bottom of product in combination with the fixed card, effectively reduce the cost of installation and keep the overall project appearance beauty;
● PC housing with structural waterproofing.




● The controller output signal cable and power cable is separate and distinct direct plug-in operation.(4mm for signal line, 6mm for power cord)
●  Controller based on the actual use of the number of matching(16 pixel points per PCS)
●  According the 80% of the total power to choose power supply and power cord, the maximum qty is 10pcs per string.
