18MM High brightness waterproof 5050 SMD Rigid Bar
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
Detail Description
Regulations

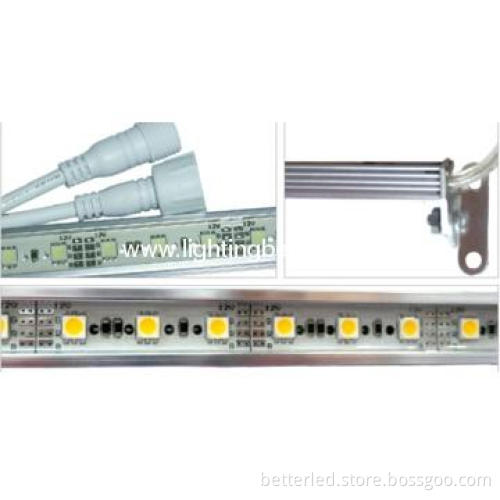

●1000mm*18mm waterproof rigid bar, 5050SMD 60leds/m
●LED color：red, yellow, blue, green, white etc.
●Voltage：DC 12V；
●LED working current：1100mA；
●Dual-core design lines；
●LED angel：120degree。
Basic parameters
●1000mm*18mm waterproof rigid bar, 5050SMD 60leds/m
●LED color：red, yellow, blue, green, white etc.
●Voltage：DC 12V；
●LED working current：1100mA；
●Dual-core design lines；
●LED angel：120degree。
Basic parameters
| Project | Symbol | Absolute Maximum Rating | unit |
| Forward Current | IF | 1100 | mA |
| Power Dissipation | PD | 14 | w |
| Electrostatic discharge | ESD | 800 | v |
| Operating Temperature | Topr | -25~ +45 | °C |
| Storage Temperature | Tstg | -40~+80 | °C |
| Life | 20000 | H |
Note：LED can be Cree and Epistar
Cover
●Aluminum material, make sure good heat dissipation, and reduce the light loss after long time usage;
●Thick aluminum cover(495g),make sure stable structure;
● Electric dyeing on the surface, to ensure attractive appearance and also has a good antioxidant capacity；
●H-type mechanical structure, and fixed clip with the bottom of the alignment, effectively reduce installation cost and raise overall project appearance;
Cover
●Aluminum material, make sure good heat dissipation, and reduce the light loss after long time usage;
●Thick aluminum cover(495g),make sure stable structure;
● Electric dyeing on the surface, to ensure attractive appearance and also has a good antioxidant capacity；
●H-type mechanical structure, and fixed clip with the bottom of the alignment, effectively reduce installation cost and raise overall project appearance;
● With PC housing in combination can be structural waterproofing
Additional Information
| Payment Terms | L/C, T/T, Others |
|---|---|
| Minimum Order | 100PCS |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | 7-15days |
| FOB Port | Shenzhen |
| Loading Info | By sea, by air, by express delivery,DHL,TNT,FEDEX,EMS |
| Target Market(s) | Eastern Europe, Latin America, North America, Northern Europe, Oceania |
