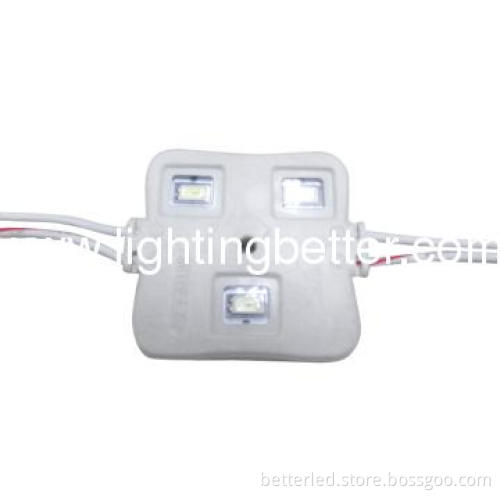

5630SMD 3leds/pc injection LED module with high lumen led
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Brightness | 20-25LM |
|---|---|
| Beam angle | 120° |
| Life | 50000hours |
| IP | IP65 |
| Temperature | ℃ |
| Color Mode | Colorful |
| Lumen | 20-25LM |
| Voltage | 12V |
| Power | 1.5W |
Detail Description
> Illumination Index |
| NameLEDColorWave length/ColortemperatureLumen (SingleModule)AngleBE-ME5630WW3-A/G38SMD5630WW2800-3200K105LM±10%120°BE-ME5630NW3-A/G38NW4000-4500K105LM±10%BE-ME5630W3-A/G38W7000-8000K105LM±10%BE-ME5630CW3-A/G38CW10000-14000K105LM±10%BE-ME5630R3-A/G38R620-630nm30LM±10%BE-ME5630G3-A/G38G520-530nm75LM±10%BE-ME5630B3-A/G38B465-475nm18LM±10%BE-ME5630Y3-A/G38Y585-595nm21LM±10%
|
> Electrical Parameter & working condition |
| No.ItemParameter01Drive modeConstant voltage drive02Input voltageDC12V03Power(Single module)1.5W(Typ)04LED Number(Single module)3PCS05Max connection(PCS)20(Typ)06Cover color & materialMilky white PVC + PC lens07IP LevelIP6508Working temperature-20～+60℃09Stock temperature-40～+80℃10Life-span3years/15000H11Weight(20pcs/String)310g
|
> Product Feature |
|
1、Adopt High lumen 5630 SMD LED, no light spot, with a low lumen recession and good consistency. 2、With a low power consumption and high lumen value, a long life-span, maintenance-free. 3、With a plastic injection technique for outer cover, this unique structure grants a better cooling effect. 4、IP Rate: IP65 5、DC 12V low voltage input, reliable and safe. 6、Adopt series-parallel connection circuit, 20Pcs for 1 string, each module could be singled out. |
> Application |
This product is applicable for 8-20cm glowing character, advertisement board, light box or local lighting. |
Additional Information
| Payment Terms | T/T, L/C |
|---|---|
| Minimum Order | 500pcs |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | Delivery time:5-15days |
| FOB Port | Shenzhen |
| Loading Info | FOBshenzhen,DHL,EMS,TNT,FEDEX |
| Packing Info | standard export package |
| Target Market(s) | Latin America, Middle East, Northern Europe, Oceania, Western & Southern Europe |
