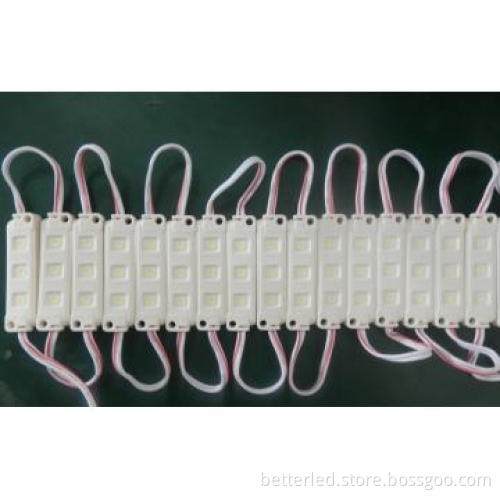

SMD3528 3leds/pc injection LED module with high lumen led

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

> Illumination parameter（Ta=25°C）

Item No.	LED	Color	Wave length/Color temperature	Lumen (Single Module)	Angle
BE-ME3528WW3-A/G73	SMD3528	WW	2800-3200K	16.5LM±10%	120°
BE-ME3528NW3-A/G73	NW	4000-4500K	16.5LM±10%
BE-ME3528W3-A/G73	W	7000-8000K	16.5LM±10%
BE-ME3528CW3-A/G73	CW	10000-14000K	16.5LM±10%
BE-ME3528R3-A/G73	R	620-630nm	4.5LM±10%
BE-ME3528G3-A/G73	G	520-530nm	12LM±10%
BE-ME3528B3-A/G73	B	465-475nm	3LM±10%
BE-ME3528Y3-A/G73	Y	585-595nm	3LM±10%

>Electrical Parameter & working condition

> Product Feature

1、Adopt high lumen 3528 SMD LED, no light spot, with a low lumen recession and good

consistency.

2、With a low power consumption and high lumen value, a long life-span, maintenance-free.

3、With a plastic injection technique for outer cover, this unique structure grants a better cooling

effect.

4、IP Rate: IP65

5、DC 12V low voltage input, reliable and safe.

6、Adopt series-parallel connection circuit, 20Pcs for 1 string, each module could be singled out.

> Application

This product is applicable for 8-20cm glowing character, advertisement board, light box or local lighting.

Payment Terms	T/T, L/C
Minimum Order	500pcs
Lead Time / Delivery Time	7 Day(s)
Sample Available	YES
FOB Port	Shenzhen
Target Market(s)	Japan & Korea, Latin America, Oceania, Western & Southern Europe
