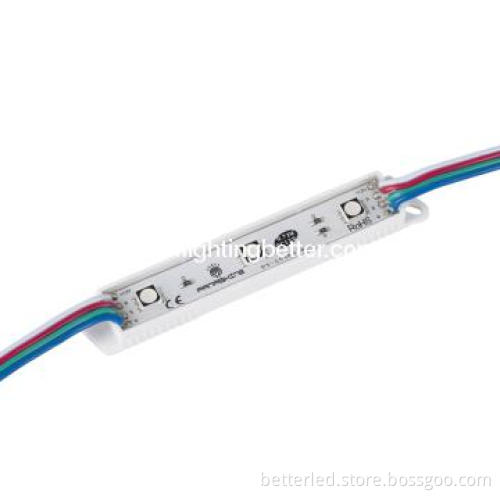

Better High lumens waterproof SMD5050 RGB Led module with 3leds/pc.
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Life | 50000hours |
|---|---|
| IP | IP65 |
| Color | Colorful |
| Temperature | ℃ |
| Color Mode | Colorful |
| Voltage | 12V |
| Power | 0.72W |
Detail Description
Features:
² To adopt the 5050 SMD LED as the light source;
² Working Voltage：DC12 V
² LED Working Current：51-57mA
² LED View Angle：120DEG
² Grade of waterproof：IP66
² Packing：Carton
Applications：
² Add. boxs；
² Lighting projects；
² Family decorations；
² Special lighting in other places；
Absolute maximum parameter（Ta=25°C）：
| Item | Symble | Absolute Maximum parameter | Unit |
| Forward Current | IF | 60 | mA |
| Power | PD | 0.72 | W |
| Anti-static Voltage | ESD | 800 | V |
| Working temperature | Topr | -25~+45 | °C |
| Storage temperature | Tstg | -40~+80 | °C |
Electrical／Optical characteristics(Ta=25°C)
| Part No. | Color | Led quantity | Working current | Wave/color temperature | Led Luminous Flux | Packing |
| ET-MD5050R3N03-J | R | 3 | 51-57mA | 625-630nm | 9-12Lm | Carton |
| ET-MD5050Y3N03-J | Y | 3 | 51-57mA | 590-595nm | 9-12Lm | |
| ET-MD5050B3N03-J | B | 3 | 51-57mA | 465-470nm | 9-12Lm | |
| ET-MD5050G3N03-J | G | 3 | 51-57mA | 515-520nm | 24-30Lm | |
| ET-MD5050W3N03-J | PW | 3 | 51-57mA | 5000-6000k | 36-45Lm | |
| ET-MD5050LW3N03-J | CW | 3 | 51-57mA | 7000-9000k | 36-45Lm | |
| ET-MD5050NW3N03-J | WW | 3 | 51-57mA | 2900-3200k | 36-45Lm |
Remark:
1. Flux measurements allow tolerance of ± 15%.
2.LED Flux, Wave length, color temperature parameter can be produced by customers specifying.
Instruction：
1.3 PCS 5050 LED module (waterproof): 2 power wires are to be connected from the products. One is yellow color, the other is pure white color, the diameter is 22AWG, and the length is 110mm. The yellow wire should be connected at DC12v power positive pole, and the pure white wire should be connected at DC12v power negative pole.
2 Installation methods：
To Put the double glue fabric on the base.
3.Installation remarks：
1)correct connecting
2)Do not extend the absolute maximum parameter when the products are working
3)Note anti-static as the process of installing and working. Do not touch the light source and glue with the sharp things
4)Do not touch the chemicals, close fire
5)The longest one-way to power a few lights to not more than 30 light source
Additional Information
| Payment Terms | L/C, T/T, Western Union, Others |
|---|---|
| Minimum Order | 1000pcs |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | Delivery time:7-15days |
| FOB Port | Shenzhen |
| Loading Info | FOBshenzhen,FEDEX,EMS,DHL,TNT |
| Packing Info | plastic bag and carton,carton size:44-42-24cm |
| Target Market(s) | Eastern Europe, Hong Kong/ Macao/ Taiwan, Latin America, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
