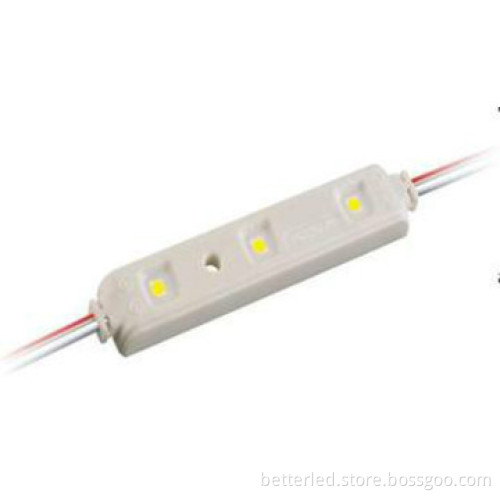

injection glue 3528 led module
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Life | >30000hours |
|---|---|
| IP | IP65 |
| Color | Monochrome |
| Color Mode | Monochrome |
| Voltage | 12V |
| Lumen | 12-14lm |
Detail Description
- Product parameter:
| Item No.: | LED | Color | Wave length Color temperature |
Lumen (Single Module) | Angle |
| TOP3528 | W/W | 2800-3200K | 16.5LM±10% | 120° | |
| N/W | 4000-4500K | 16.5LM±10% | |||
| W | 7000-8000K | 16.5LM±10% | |||
| C/W | 10000-14000K | 16.5LM±10% | |||
| R | 620-630nm | 4.5LM±10% | |||
| G | 520-530nm | 12LM±10% | |||
| B | 465-475nm | 3LM±10% | |||
| Y | 585-595nm | 3LM±10% |
- Technical Parameter:
| No. | Item | Parameter |
| 01 | Drive method | Constant drive |
| 02 | Voltage | DC12V |
| 03 | Power(single module) | 0.3W(typ) |
| 04 | LED QTY(single module) | 3PCS |
| 05 | Max Connection Qty(PCS) | 20(typ) |
| 06 | Cover color & material | Milky white PVC +PC lens |
| 07 | Size | 73*12.5*5.8mm |
| 08 | IP Level | IP65 |
| 09 | Working temperature | -20～+60℃ |
| 10 | Stock temperature | -40～+80℃ |
| 11 | Warranty | 2years |
| 12 | Weight(20pcs/string) | 165g |
Product feature:
- 1、 Take TOP 3528LED as light source, no light spot, low decay and good consistency.
3、Injection outer cover, beautiful and unique appearance, good heat dissipation.
4、 Protect level：IP65
5、 Input voltage: DC12V, reliable and safe.
6、With series-parallel connection circuit for LED PCB, 20pcs modules are connected to one string and each module can be cut individually.
Application
- Backlight of giant signage and channel letter
- Marine signal and task lighting
- Decoration lights for furniture: shelf, wardrobe, etc.
- Architectural outdoor lights
- Decoration lights for bar, pub, club, disco
- Lights for events and show
- Lights for fountain, spring, waterfall, pool
Additional Information
| Payment Terms | T/T, Western Union |
|---|---|
| Minimum Order | 1000PCS |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | the delivery time according the qty! |
| FOB Port | Shenzhen |
| Target Market(s) | North America, Northern Europe, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
