High quality SMD5050 1leds Injection module with CE
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| colour | white/warm white/cold white |
|---|---|
| Life | 50000hours |
| Color | Monochrome |
| Temperature | ℃ |
| Color Mode | Monochrome |
| Voltage | 12V |
| IP | IP66 |
| Lumen | 16-18 |
| Power | 1.2w |
Detail Description

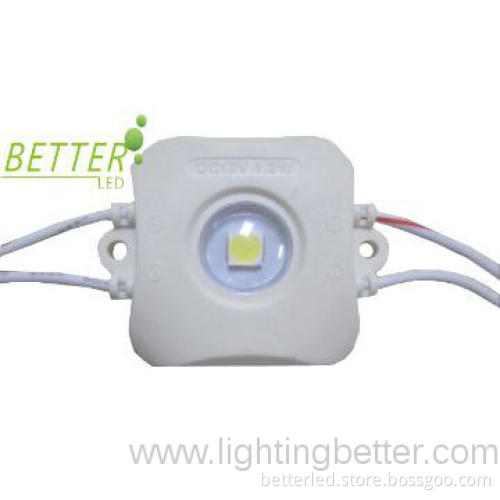

1Leds 5050 Single Color Module With Injection
(Waterproof)
Feature:
* 5050 SMD 3leds/pc
* Working Voltage : DC12V
* Working current : 80mA
* Beam angel: 120 °
* Waterproof : Injection IP65
* Package ：20pcs/reel, 200pcs/bag ,2000pcs/carton
* Size: 36*36mm
* Brightness : 20-25LM/LED
* Watt: 1.2W/PC
Diagram:
Package:
Installation
Fixed by M3 screw
200MP 3M tape in the back .
Precaution
* Connected well
* Work within max parameter
* Don’t touch product with sharp things
* Don’t touch with chemical
* 25pcs /reel is suggested to connect
Additional Information
| Payment Terms | L/C, T/T, Others |
|---|---|
| Minimum Order | 100PCS |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | 7-15DAYS |
| FOB Port | Shenzhen |
| Loading Info | FEDEX DHL UPS EMS |
| Packing Info | 20PCS for a rope |
| Target Market(s) | Japan & Korea, Latin America, North America, Western & Southern Europe |
