2Leds 5050 Single Color(Aluminum Base) IP65 module
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| colour | white/warm white/cold white/RGB |
|---|---|
| Life | >50000h |
| IP | IP65 |
| Color | Monochrome |
| Temperature | ℃ |
| Color Mode | Colorful |
| Voltage | 18V |
| Lumen | 16-18lm |
| Power | 0.48W |
Detail Description

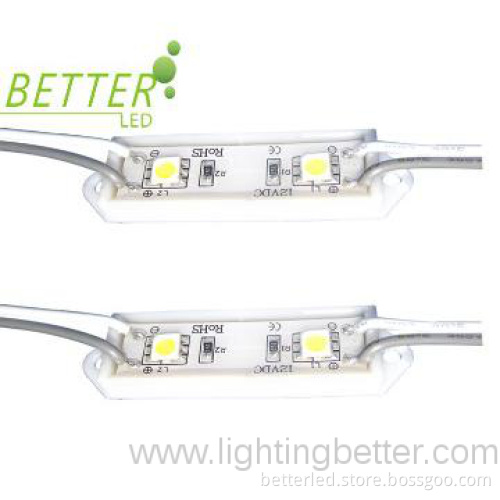

2Leds 5050 Single Color Module with Aluminum base
(Waterproof)
Feature:
* 5050 SMD 2leds/pc
* Working Voltage : DC12V
* Working current : 60mA
* Beam angel: 120 °
* Waterproof : Aluminum base with glue IP65
* Package ：25pcs/reel,250pcs/bag ,2000pcs/carton
* Size: 48*15mm
* Brightness : 20-22LM/LED
* Watt: 0.48W/PC
Diagram:
Package:
Installation
Fixed by M3 screw
3M tape in the back .
Precaution
* Connected well
* Work within max parameter
* Don’t touch product with sharp things
* Don’t touch with chemical
* 25pcs /reel is suggested to connect
(Waterproof)
Feature:
* 5050 SMD 2leds/pc
* Working Voltage : DC12V
* Working current : 60mA
* Beam angel: 120 °
* Waterproof : Aluminum base with glue IP65
* Package ：25pcs/reel,250pcs/bag ,2000pcs/carton
* Size: 48*15mm
* Brightness : 20-22LM/LED
* Watt: 0.48W/PC
Diagram:
Package:
Installation
Fixed by M3 screw
3M tape in the back .
Precaution
* Connected well
* Work within max parameter
* Don’t touch product with sharp things
* Don’t touch with chemical
* 25pcs /reel is suggested to connect
Additional Information
| Payment Terms | L/C, T/T, Others |
|---|---|
| Minimum Order | 10PCS |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | 7-15days |
| FOB Port | Shenzhen |
| Loading Info | By sea, by air, by express delivery |
| Packing Info | 44x42x24cm |
| Target Market(s) | Central & Southern Asia, Eastern Europe, Latin America, Mainland China, Middle East, Oceania, Southeast Asia, Western & Southern Europe |
