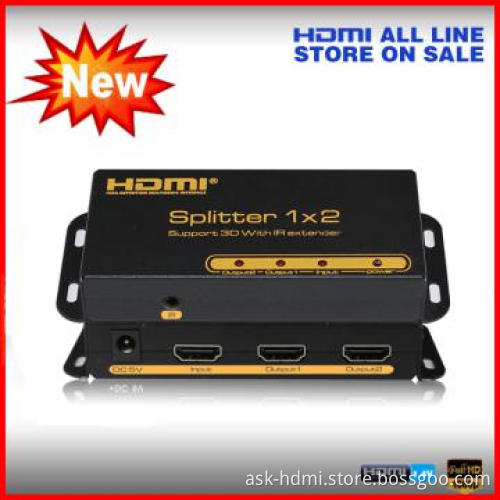

1x2 HDMI Splitter with IR Function

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

color	black
Silk-screen	yellow
input15M	output 25M
1 in 2 out	with IR infared
resolution	1080p
Resolution Ratio	1080p
Application	HDTV

Detail Description

1x2 HDMI splitter with IR

FEATURES
l One HDMI input signal split to two HDMI sink devices
l Support 3D
l Support CEC
l Support deep color 30bit, 36bit
l With built-in IR extender function
l Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
l Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
l Support signal retiming
l Support input up to 15metres AWG26 HDMI standard cable length,
output distance up to 25metres AWG26 cable length
l No loss of quality
l Installs in minutes
l Need DC5V/1A power supply
The accessories with the machines lists as picture:
1,5V Power Adaptor
2,one pc of Manual
3,The IR Adaptor
4,The IR Receiver Unit
5,The IR Transmitter unit

Operating and Connecting:

1. Connect one cable from HDMI source devices into HDMI Splitter input.
2. Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs.
3. Connect 5V power supply to the HDMI 1x2 Splitter.
IR Extend Function Introduction and Operation:
Function:It can control the source by the IR received command when delivery and distribute the HDMI Signal.
The way for connection:
1,To use one HDMI Cable to connect the HD Source (like Blue-Ray DVD Player,PS3 and HD DVD Player) with the HDMI input port of the splitter.
2,To use one HDMI Cable to connect IR adaptor’ HDMI input port with HDMI output port of the splitter and also use one HDMI cable to connect the HDMI output port of the IR adaptor with the input port of the display.
3,To connect the 5V power adaptor wioth the splitter.
4,To connect the IR Transmitter unit with the IR input port of the splitter.
5,To connect the IR receiver unit with the IR head input port.
6,To keep the transmitter unit of IR-TX pointing directly at the IR tube of the signal source and then it can use the signal source remote controller to control the signal source at the display end.

Additional Information

Payment Terms	T/T, L/C, Others
Minimum Order	50
Lead Time / Delivery Time	15 Day(s)
Sample Available	YES
Delivery Details	We have large quantity stock , delivery time is within 1 -15 day
FOB Port	Shenzhen
Loading Info	UPS,DHL, Sea shipping
Packing Info	Neutal , package can be up to customers made . we welcome ODM ,OEM
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
