USB to Serial TTL Cable FTDI - Cable 5V
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Color | Black |
|---|---|
| Chipset | FTDI |
| Specification | 3.3V/5V Optional |
| Warranty time | 1 year |
| Type | Extension Cable, USB |
| Jacket color | Black |
Detail Description

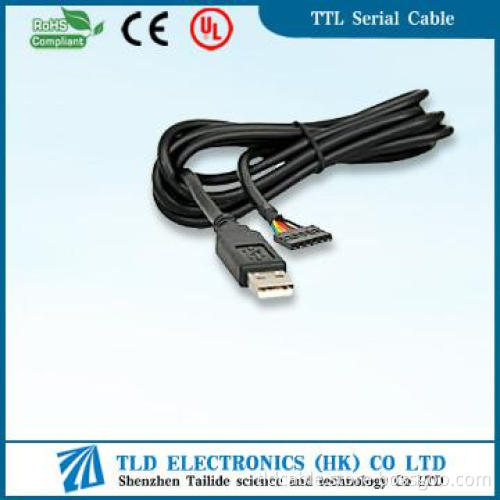

The TTL232R cables are a family of USB to TTL serial UART converter cables incorporating FTDI’s FT232RQ USB to Serial UART interface IC device which handles all the USB signalling and protocols. The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB.
Each TTL232R cable contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into the USB connector end of the cable. The other end of the cable comes with a selection of different connectors supporting various applications .
Cables are FCC, CE, RoHS compliant and are available at TTL levels of +5V and +3.3V.
Cables are available with either a 6way SIL,0.1”pitch connector, a 3.5mmAudio Jack, an 8 way, keyed 2mmpitch connector (intended for use with VMUSIC2 or VDRIVE2) or bare, tinned wire ended connections .
The USB side of the cable is USB powered and USB 2.0 full speed compatible. Each cable is 1.8m long and supports a data transfer rate up to 3 Mbaud.
Additional Information
| Payment Terms | T/T, Money Order, Paypal |
|---|---|
| Minimum Order | 500 |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | price terms:EXW or FOB |
| FOB Port | Shenzhen |
| Loading Info | by Sea/by Air/by Express (optional) |
| Packing Info | Polybag |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
