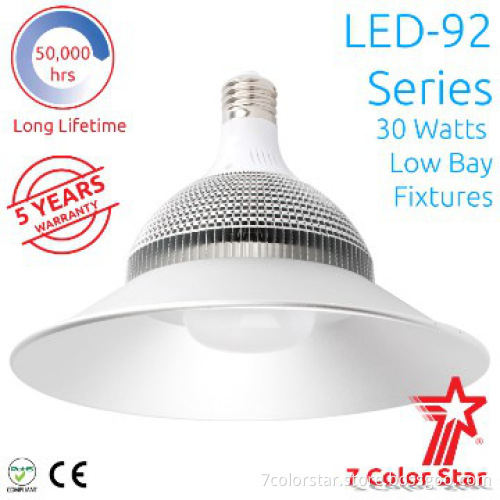

LED Low Bay Fixture, 30 W 120° Beam Angle, 50000 hours lifespan

LED-92 Series 30 Watts
Low Bay Fixtures 120° Beam Angle
High performance - Incredible 50,000 hours lifespan
5 Years WARRANTY.



General Description
7 Color Star’s LED 92 series low bay fixtures features a frosted lens design to create an even
glow illumination and minimize glare. Developed for industrial lighting applications with a
mounting height of over 3 metres. It can replace existing HID & HPS low bay fixtures up to 150W.

Applications
- Retail Lighting
- Industrial Lighting

Features, Structure & Materials
High performance - Incredible 50,000 hours lifespan
- Glare Free.
- 12’ Aluminum hood with silver grey surface.
- Patented Thermal management, aluminum Air-Flow fins provides maximum operational life.
- High Output COB LED’s lighting source.
- Super bright natural light (5000°K) to provide superior lighting experience.
- High power factor, low THD integrated driver power.
- <0.3 seconds ultra-fast startup, which means that light,
- Stable LED engine design with Uses advanced technical support.
- Up to 10 years maintenance free operations.
- 5 Years Warranty on complete fixture with lighting source LED’s, Driver, & Aluminum hood.

Specifications
Input Voltage [VAC]: 120 - 277
System Input Power [W]: 32
Input Frequency [Hz]: 50/60
CCT [°K]: 3000/4000/5000/6000
CRI: 80+
Beam angle [°]: 120 Fixed Control Static
Warranty [years]: 5
Humidity: 20-50% non-condensing, dry locations only
Operating Temperature Range [°C]: -10 to +35
Strorage Temperature Range [°C]: -40 to +50
IP Rating: IP43

Dimensions [mm]


Ordering Description

- Weight only 1.1kg(2.425lbs) very light.




Click below url to download the data sheet:
https://goo.gl/eKdVX5
