Dimmable 2835smd Wam White Flat 10W 8 inch Panels
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
High Luminous Flux | 650lm |
---|---|
Size | Ф200*14mm |
Certification | CE RoHS FCC |
Power | 10W |
LED Qty | 3528SMD |
Application | Bathroom, Car Park, Cinema, Hospital, Meeting Room, Office, Restaurant |
Material | Acrylic, Aluminum, PMMA |
Light Source | LED |
Voltage | 220V |
Detail Description

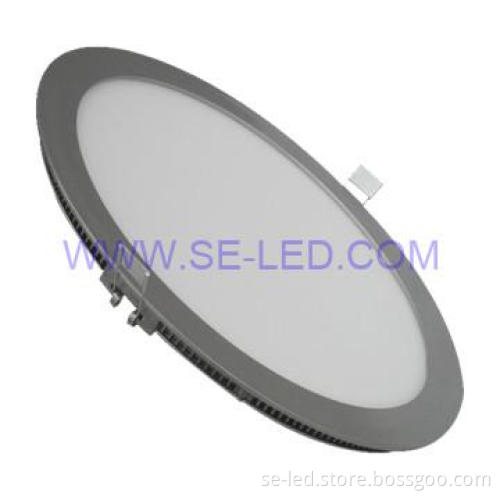

Ultra Thin 200x14mm LED Panel Light adopts super bright LED as its luminous body. The anodized aluminum frame is stylish and fashionable with everlasting color. 10W LED Panel Light are powered by low voltage constant current driver, which is safety, energy-saving and long life. We can do Warm White, Pure White and Cold White LED Panel Light.
Model | SEP-R200W-10 |
lighting source | SMD3258 |
LED QTY | 112pcs |
Power consumption | 10W(includes driver) |
Input voltage(Driver) | 100-240VAC/50~60hz- |
Input voltage(Lighting) | 48~56 V VDC |
Luminous Flux | >650Lm(Pure White) |
Efficiency | ≥85% |
PF | ≥0.90 |
LED Lifespan | ≥50000H |
CCT |
2800~3500K(Warm White) 4500~5500K(Natural White) 6500~7500K(Pure White) |
Luminous | 650lm (±5%) |
Luminescence efficiency | 70lm/w |
Luminosity | >1640ux(1.0Meter, Pure white) |
Bean-angle | 120° |
Ra | Ra≥70 |
Temperature rising | <20℃ |
Operation temperature | -40~+50℃ |
Relative humidity | 10%-80%RH |
Fixture Material | Oxidized aluminum+high quality PMMA(Acrylic)+PC diffuser |
Dimension | 200X14MM |
Net Weight(includes driver) | 11.0KG |
Protection grade | IP42 |
Insulation Level | CLASS Ⅱ |
Environmental | All materials meet with RoHS compliance |
Certificate | CE,RoHS |
Features:
1. Energy saved up to 80%, high brightness, even lighting output.
2. Instant start, no flickering, no humming
3. New high efficiency constant current driver.
4. Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED
5. No electrical wave, conforming to CE
6. Green environmental protection, lead-free material, conforming to RoHS
7. No RF interference.
Applications:
Hotels
Conference/Meeting rooms
Factories and Offices
Commercial Purposes
Residential/Institution Buildings
Schools, Colleges and Universities
Hospitals
Places where energy saving and high color rendering index lightings required
Installation Types:
Suspending
Ceiling
Embedding
Trade Terms:
1. Payment: T/T, 30% before production, 70% before delivering, Western Union, Paypal.
2. Production lead time: 100~500pcs for 10 days, 500~1000pcs for 15 days.
3 Shipping: DHL, FedEx, UPS, TNT, Air or SEA.
4 Shipping port: SHENZHEN, Mainland China.
5 Discounts are offered based on order quantities.
Advantage:
1.Your inquiry related to our products or prices will be replied within 24hrs.
2. Well-trained and experienced staffs to help you locate the products in your best interest.
3. OEM & ODM production available.
4. 2year warranty.
5. Protection of your sales area, design and all your private information.
Additional Information
Payment Terms | L/C, T/T, Credit Card, Western Union, Money Order, Paypal, Others |
---|---|
Minimum Order | 10pcs |
Lead Time / Delivery Time | 7 Day(s) |
Sample Available | YES |
Delivery Details | EXW |
FOB Port | Shenzhen |
Loading Info | Express, Air-transport, Ocean shipping |
Packing Info | 5pcs per carton |
Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
