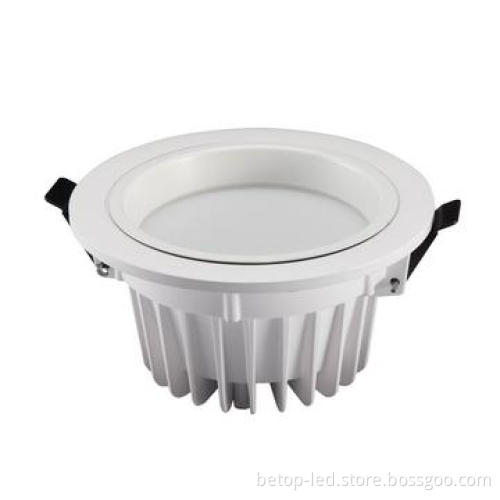

6\'\' 20W SMD white Led Downlight

     Samsung   5630 SMD LED          5W 10W 20W 30W          AC85-265V  led Down light

Betop LED down light is designed to replace conventional down light such as compact fluorescent lamp( CFL) and

halogen down light. It is designed such a way that the light  output and color quality is similar or even better

compared to conventional type while consuming less power,dissipating less heat and environmental friendly

Material & Characteristic

u Super bright 5630 Samsung SMD LED chip,high color rendering index, long life span

u Aluminum alloy shell with high thermal conductivityand superior cooling performance

u Optical PC diffuser plate with 93% light transmittance

u High efficient constant current driver, safety and reliable

DIMENSION

Specification Sheet

Specification Sheet

 Input voltage              AC 100-240V/50-60Hz

Power                         35W

Savings                      80% (compared with halogen and incandescent lamp), 50% (compared with CFL)

Luminous flux             2550Lm±5%

Color index                 75

CCT                              2800-7200

Light source                 75 pcs Samsung LED

Detailed specification

Product Number                 BT-TD-D080

                                          BT-TD-S080

Certification                     CE & ROHS certified

Input Voltage                     AC100-240V/50-60Hz

Dielectric strength                 5S@4000VAC,5mA

Ambient temperature               -20°C-40°C

Life (hrs) span                     30,000

Beam angle                         120°

Lighting efficiency                     71Lm/W

Luminous intensity                     780 lux@1M,

Net weight                                2200g g

QTY/Carton                            10pcs/carton @ 52X42X22cm

Application

u Shop, showcase, hotel, restaurant decorative illuminations

u Exhibition, museum, office lighting

u Disco, bar, karaoke ambience lighting

Warranty

Betop Warrants its products to be free from defects of material and workmanship for a period of thre years from

date of shipment to the original buyer .Betop will repair or replace defective parts /products at their discretion under

warranty obligation
