2014 new IP camera plug and play IP security camera
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| solution | IP 720P camera |
|---|---|
| Color | Black |
| Product Type | Kit |
Detail Description
IP camera plug and play IP security camera
Specifications:
Specifications:
- 4CH 960P, full HD preview, 4CH playback
- IP address was assigned automatically, plug and play
- Data transferring and power supplying all by one network cable
- Support network access without activeX installation
- Mobile viewing, support all smartphone systems
- Audio input/output, 2*1080P + 2*960P are optional
-

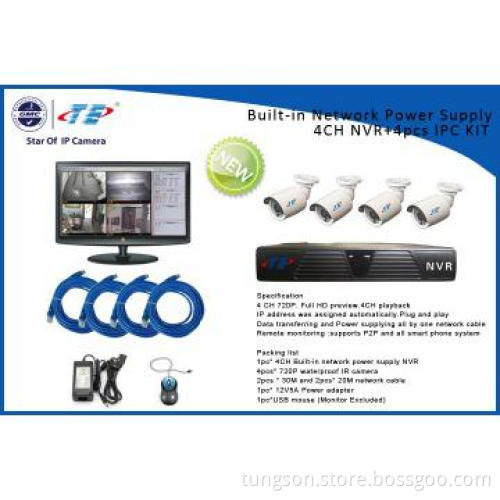

Packing List:
- 1* 4CH 720P NVR (TE-NVR9104-4KIT)
- 4* 720P Waterproof IR Camera (TE-IP211X)
- 4* 18m Network Cable
- 1* 12V6A Power Adapter
- 1* USB Mouse
-
NVR Specifications:
Model Name TE-NVR9104-4KIT Operating System Embedded LINUX operating system Image Code Control Image code quality adjustable, variable bit stream
and constant bit stream optionalDual Stream Each channel can set main stream and sub stream Preview 1080P (1920*1080)/960P(1280*960)/720P(1280*720) Playback Any 4CH 1080P/720P playback simultaneously Backup Method Support U disk, USB mobile HDD, USB DVR-RW,
network storage and backupRecording Storage Local HDD, network External Port Video Input 4CH 960P/720P IPC 2CH 1080P +2CH 960P/720P IPC (Optional) Audio Input 4CH network audio input (optional) Video Output 1CH VGA + 1CH HDMI Audio Output 1CH BNC output (Optional) Network Port 5 RJ45, 100M LAN port, Data transferring
and power supplying all by one network cableUSB Port 3 USB 2.0 ports Alarm Input 4CH (optional) Alarm Output 1CH (optional) HDD HDD Port 1 SATA port MAX Capacity MAX 3TB for single disk Mobile Surveillance Support iPhone, Windows Mobile, BlackBerry, Symbian, Android Power Supply DC 12V6A/ POE Power Consumption ≤ 20W (without HDD) Working Temperature -10℃ ~ + 55℃ Working Humidity 10%~90% Dimension Equipment: 260mm*220mm*43mm Weight (without HDD) N.W: 1.5kg
IP Camera Specifications:
Model TE-IP211X Sensor 1/4´´ 1.3Mega progressive scan CMOS Total Pixels 1376 (H) * 1070 (V) Effective Pixels 1280 (H) * 1024 (V) Min. Illumination 0Lux/F1.2 (IR On) IR Distance 10-15M (30 * Ф 5 LEDs) S/N Ratio >39db (AGC OFF) Electronic Shutter Auto/1/25/s - 1/10000s Day/Night EXT/Auto Lens Type 3.6mm 1/2.5´´ DC/ICR Video Compression H.264 Image Resolution 1280*720, 704*576, 352*288 Dual-Stream Main Stream: 720P/D1/CIF 25fps;
Extra Stream: D1/CIF/QCIF 25fps/PALVideo Bit Rate 64kbps~4096kpbs continuously - adjustable Data Storage Type Record (Video), picture file Storage Manual, auto (timing, motion detection, alarm) Protocol/ Network Function TCP/IP, UDP, DHCP, UPNP, DNS, PPPOE, DDNS,
FTP, Email, Alarm sever, ONVIFWeb Browser IE Mobile Phone Surveillance Support iPhone, windows, BlackBerry, Andriod, Symbian Network Interface RJ45 10M/100M adaptive Ethernet interface Operating Environment -10℃ ~ + 55℃/ 10%~90% Power Supply 600mA/DC12V/POE module optional Power Consumption 6W Dimensions 70(W) * 75(H)* 100(L) mm
Additional Information
| Payment Terms | L/C, T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 5 |
| Lead Time / Delivery Time | 3 Day(s) |
| Sample Available | YES |
| Delivery Details | 3-5 business days for sample order; 7-10 business days for bulk order |
| FOB Port | Shenzhen |
| Loading Info | By Express, Air or shipping by Sea |
| Packing Info | Neutral Packing |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
