1U 2SATA 4CH NVR cctv camera DVR
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| operating system | Embedded LINUX |
|---|
Detail Description

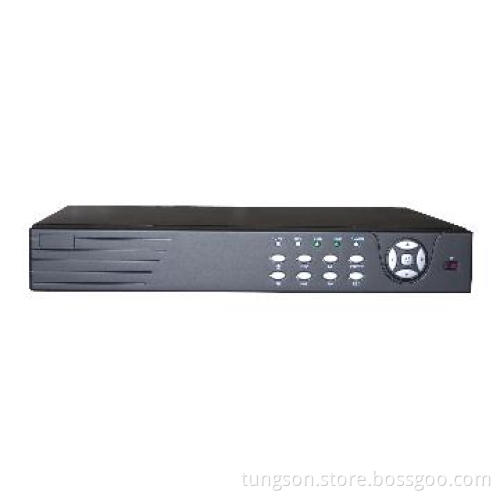

1U 2SATA 4CH NVR
TE-NVR9204T
TE-NVR9204T
- Selected screen area can be center zoomed by mouse
- Support event query,playback,backup video files,accurate backup according time
- Preview imange can be changed freely,flexible image position and unchanged physical address that facilitate construction
- Tree menu dragging,man-machine dialogue more directly,convenient to parameters setting
- 15X zooming by mouse roller,drag(preview,playback)magnified images easily
- real-time capture,capture and view simultaneously;establish independent area to save shots in hard drive
- video playbcak displayed by timeline,video type labelled by color,query video easily
- standardized resolution,resolution acan be adjusted according to display device to achieve the best image effect of display
- Hard disk order in writing,from zero track began to write data,enhance hard disk efficiency by 2.5 times
| operating system | embedded LINUX |
| image encoding control | image quality adjustment available,variable stream and limited stream optional |
| Dual-stream | Each channel can be set |
| video standard | 2CH 1080P(1920*1080)30 frames/sec+2CH 720P(1280*720)30frames/sec |
| monitor image quality | 1080P(1920*1080)/720P(1280*720) |
| image playback quality | Multiple detection area in each screen,6 sensitivity setting |
| image playback quality | any 4ch 1080p/720p synchronization playback |
| regional shelter set | each channel support 4 regional shelter block |
| video mode | manual/automatic/dynamic monitoring/alarm triggered |
| backup mode | support hard disk,U disk,USB mobile hard disk,USB burner.network storage and backup |
| operation mode | mouse,remote control,front panel buttons,keyboard operation |
| local login | user name and password |
| video saving | local hard drive,network |
| video input | 1*(1920*1080)+3*(1280*720)IP Camera |
| audio input | 4CH network audio input |
| video output | 1CH VGA+1CH HDMI |
| audio output | 1CH BNC assisted output |
| network interface | 1RJ45,10/100/1000M adaptive ethernet port |
| RS485 interface | full duplex standard 485 interface,supports 19 kinds of PTZ protocol |
| USB interface | 3USB 2.0ports(1 in front panel,2 in tail panel) |
| Alarm input | 4CH |
| alarm output | 1CH |
| wireless interface | 3G,WIFI |
| hard disk port 2 SATA hard disk interface/1 SATA + 1E-SATA | |
| Hard disk | max.capacity each interface support 2TB maximum capacity 2TB for each interface |
| Mobile monitoring | ipone,windows mobile,blackberry,symbian,androd |
| Power supply | 12V 4A |
| power consumption | ≤25 without hard drive |
| operating temperature | -10℃~ 55℃ |
| operating humidity | 10%-90% |
| size | w330*h51*d265mm |
Additional Information
| Payment Terms | L/C, T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 1pc |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | delivery before received the payment |
| FOB Port | Shenzhen |
| Loading Info | by air,by express or shipping by sea |
| Packing Info | carton box |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
