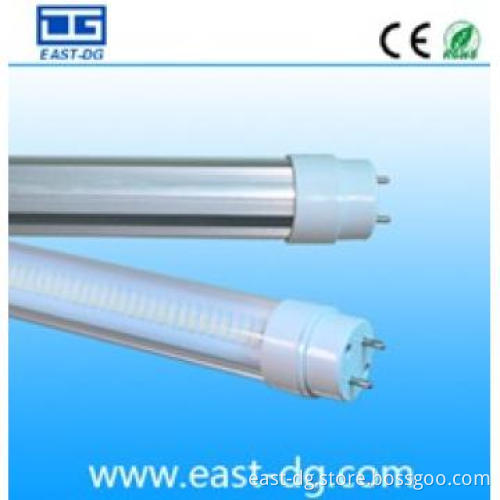

New products!!! 144 pcs 2835 SMD T8 LED Tube light

1、【Description】

This product belongs to the East-DG self-R&D led tube light series, which using high quality SMD 2835 LED as a source and adopting led constant current power as a built-in driving power. The other components including highthermal conductivityaluminum shell, aluminum light board and PC cover of high transmittance. All componentsabove guaranteethe lamp’s luminous flux, long life and resistance to external shocks. Itcan be widely used in the interior lighting of homes, hotels, shopping malls, supermarkets, office space, car parks, factories, advertising box, corridor and so on.

2、【Features】

• High brightness: 144pcs high quality 2835 SMD as source,each led lumen≥18LM.

Good heat conductivity, small light fading, high lumen, ect.

• Saving energy:Using high efficiency constant led driver , which save 50% energy than traditional fluorescent lamp;
•  Environment protection:Cold light source, non-thermal radiation and ultraviolet light, no damage to the eyes and skins, no Mercury, no Lead and other heavy metals, achieve the real sense of green lighting;
• No stroboscopic: Pure DC work which can effectively protect the eyes;
• Good dissipation: LED light source direct close contact with the aluminum plate and aluminum shell, good in heat dissipation and further guarantees the lifespan of the light source.
• Stability: Adopting the high efficiency constant current self-R&D driver, short lead time, anti-impact, the frequency of switching can up to a million times. All that features guarantee the lamp’s long life.
• Strong vibration resistance: This lamp does not contain glass accessories and adopt the solid state light source, so it is strong vibration resistance and easy to transport.
• Long life span: ≥50,000 hrs;
• Certification: Approved by CE, RoHS.

3、【Electronic parameter】

4、【光学参数Photometric Characteristics】

5、【Basic parameters】

6、【Light distribution curve】

7、【Outline Size】

8、【Wing principle】

9、【Instruction】

For your safety and proper use, please read this instruction carefully before installation and maintenance, and put it away for raining days. Installation and maintenance should be operated by technicians. Attention! Before complete installation and maintenance, do not switch on the electricity. Any improper installation or any maintenance against the instruction may lead to electric shock or leakage of electricity.

 (1) For the early inductive ballast’s traditional fixture, led tube is installed as follows:

Step 1, Cut off the power before installation.

Step 2, Takes down the starter.

Step 3, Takes down the traditional fluorescent lamp, then loaded on LED tube.

 (2)For the electronic ballast fixture, led tube is installed as follows:

Step 1, Cut off the power before installation.

Step 2, Takes down the electronic ballasts.

Step 3, Connect the traditional tube’s lamp holder, matched A and B together, C and D together.

Step 4, Lamp base ( Aand B , Cand D) connect to the power cord.

Step 5, LED tube access in to the lamp panel.

Fluorescent lights with electronic ballast fixture, the wiring diagram is as follows

After replacing LED fluorescent lamp, the wiring diagram is as follows

*Attention：The above operation must be completed by the fully licensed professional electricians
