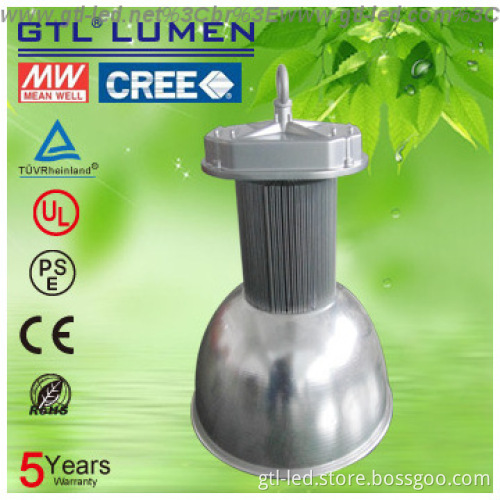

150W LED high bay light 60/90/120-degree beam angle
  • 150W LED high bay light 60/90/120-degree beam angle
  • 150W LED high bay light 60/90/120-degree beam angle
  • 150W LED high bay light 60/90/120-degree beam angle
  • 150W LED high bay light 60/90/120-degree beam angle
150W LED high bay light 60/90/120-degree beam angle
150W LED high bay light 60/90/120-degree beam angle
150W LED high bay light 60/90/120-degree beam angle
150W LED high bay light 60/90/120-degree beam angle

150W LED high bay light 60/90/120-degree beam angle

Get Latest Price
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

LED lumen >120LM/W
color white black
color temperature 2700-6350K
Light Source LED
IP IP45
Material Aluminum, Aluminum Die Casting, PC
Voltage 90-260V

Detail Description

industrial LED High bay light  GTL-LED/G01                GTL LED high bay family is the energy solutions for warehouse,workshop and other industrialand commercial applications.It\'s easy to retrofit the existing installation ,allows up 65% energy savings. Product Features：Phase change heat dissipation heat sink .High-Efficiency Bridgelux LED array withSilver coating Copper base .Uniform light dispersionLonger lifetime=Less MaintenanceEasy to install.Material/chips   Cree  Guarantee 5 years from the date of purchasePhase Change Liquid Cooling systems : The GTL advantagehe heat sink.
LED high bay light
order/model GTL-LED/G01-40W GTL-LED/G01-50W GTL-LED/GO1-60W GTL-LED/G01-75W GTL-LED/G01-100W
LED Driver Mean Well Mean Well Mean Well Mean Well Mean Well
LED type cree cree cree cree cree
LED QTY 20PCS 20PCS 25PCS 36PCS 42PCS
Total power(w) 40W 50w 60W 75W 100w
Iutput voltage（V) AC90-260V AC90-260V AC90-260V AC90-260V AC90-260V
Power factor（PF) 0.95PF 0.95PF 0.95PF 0.95PF 0.95PF
output voltage（V) DC24v DC24v DC24v DC24v DC24v
Luminous Flux(lm) 4000-4400lm 5000-5500lm 6000-6600LM 7500-8250lm 10000-11000lm
Power efficiency(LM/W) 100-110LM 100-110LM 100-110LM 100-110LM 100-110LM
Length: 667*762*765 667*762*765 727*812*815 727*812*815 757*842*845
Life: 25000H 25000H 25000H 25000H 25000H
 Color temperature (emitting color) Warm white:     2700-3500K Warm white:     2700-3500K  Warm white:     2700-3500K Warm white:     2700-3500K Warm white:     2700-3500K
Nature white:   4000-4500K Nature white:   4000-4500K  Nature white:   4000-4500K Nature white:   4000-4500K Nature white:   4000-4500K
Daylight white: 5700-6500K Daylight white: 5700-6500K  Daylight white: 5700-6500K Daylight white: 5700-6500K Daylight white: 5700-6500K
Cool white: 7000K+ Cool white: 7000K+ Cool white: 7000K+ Cool white: 7000K+ Cool white: 7000K+
Beam angle 60°/90°/120° 60°/90°/120° 60°/90°/120° 60°/90°/120° 60°/90°/120°
Ambient temperature（℃）   -30℃ to 60℃   -30℃ to 60℃   -30℃ to 60℃   -30℃ to 60℃   -30℃ to 60℃
lnstallation heigh 4-5m 4-5m 6-7m 6-7m 8-12m
material tempered glass*A6063 tempered glass*A6063 tempered glass*A6063 tempered glass*A6063 tempered glass*A6063
N.W(kg) 5kg 5kg 7kg 7kg 10kg

order/model GTL-LED/G01-120W GTL-LED/G01-150W GTL-LED/GO1-180W GTL-LED/G01-200W
LED Driver Mean Well Mean Well Mean Well Mean Well
LED type cree cree cree cree
LED QTY 49PCS 70PCS 84PCS 84PCS
Total power(w) 120W 150w 180W 200W
Iutput voltage（V) AC90-260V AC90-260V AC90-260V AC90-260V
Power factor（PF) 0.95PF 0.95PF 0.95PF 0.95PF
output voltage（V) DC24v DC24v DC24v DC24v
Luminous Flux(lm) 4000-4400lm 5000-5500lm 6000-6600LM 7500-8250lm
Power efficiency(LM/W) 100-110LM 100-110LM 100-110LM 100-110LM
Length: 757*842*845 777*862*865 777*862*865 797*882*885
Life: 25000H 25000H 25000H 25000H
 Color temperature (emitting color) Warm white:     2700-3500K Warm white:     2700-3500K  Warm white:     2700-3500K Warm white:     2700-3500K
Nature white:   4000-4500K Nature white:   4000-4500K  Nature white:   4000-4500K Nature white:   4000-4500K
Daylight white: 5700-6500K Daylight white: 5700-6500K  Daylight white: 5700-6500K Daylight white: 5700-6500K
Cool white: 7000K+ Cool white: 7000K+ Cool white: 7000K+ Cool white: 7000K+
Beam angle 60°/90°/120° 60°/90°/120° 60°/90°/120° 60°/90°/120°
Ambient temperature（℃）   -30℃ to 60℃   -30℃ to 60℃   -30℃ to 60℃   -30℃ to 60℃
lnstallation heigh 12-15m 15-20m 18-25m 18-25m
material tempered glass*A6063 tempered glass*A6063 tempered glass*A6063 tempered glass*A6063
N.W(kg) 10kg 12kg 15kg 15kg


Parameters:


Energy comparation:

Aging:



package pictures:

Engineer department
Show room

Certification:






My dear friends, thank you for your visit to our LED high bay light!


Action! Click to send inquiry now.
You will not be disappointed with us!
We are ready and waiting to service for you...


Contact Person:Carol zhao
Email: zxx@gtl-led.com
Mobile: +86-13534126468
Skype: gtl.led.net
QQ: 2850152868


Additional Information

Payment Terms L/C, T/T
Minimum Order 2PCS
Lead Time / Delivery Time 5 Day(s)
Sample Available YES
Delivery Details payment30% deposit T/T in advancethe other balance reached before delivery
FOB Port Shenzhen
Loading Info air transportationsea transportationcan negotiate
Packing Info cartonwooden box
Target Market(s) North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
