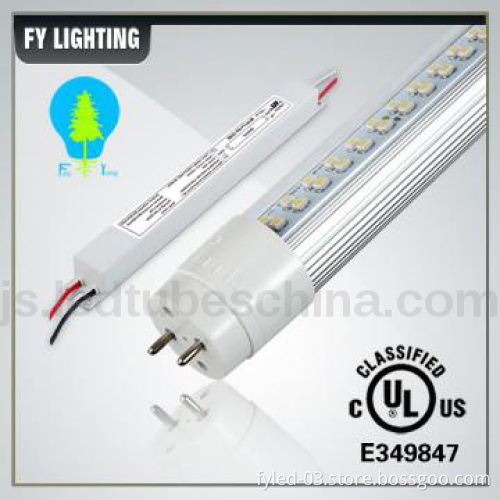

tube led lighting t8 t5 18w 288leds 120lm/w CE RoHS
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Input voltage | ac 120-277v |
|---|---|
| Color | WW/NW/PW/CW |
| Warranty | 3 years |
| PFC | >90% |
| CRI | >75Ra |
| Life | >50000hrs |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Length | 120cm |
| Lamp Base | G13 |
| Color Tones | Natural White |
| Power | 18w |
| Illuminant | SMD |
| Voltage | 110V |
Detail Description
tube led lighting high quality
FY tube t8 led features:
Model:FY-T8-1200
Length:4ft
LEDs:288pcs
Input Volt:AC120-277V
Color Temprature:2700-7000K
Power:18W
Luminous Effciency:120lm/w
Luminous flux: 2200±5%LM
Beam Angle:120°
PFC：＞0.90
CRI：>75Ra
Certification:cUL UL VDE SAA offer
Driver: internalisolated driver/external driver both ok for us
Package:20pcs/export carton. 132*24*21cm for one carton
FOR FY TUBES:
120~277V tube is UL/cUl approval
Ul no.:E341041 for tube with internal driver
Ul No.:E359847 for tube with external driver
Ul No.:E341042 for internal driver
Ul No.:E353331 for external driver
you can check here:www.ul.com/database for details.
277V~347V tube is CSA approval
csa Master control no. :252050
you can check here:https://directories.csa-international.org/
2012 NEW FRESH ITEMS LED TUBES LIGHTING FOR YOU CHOOSING:
1.2pcs tube with one external driver.(4pcs tube with one external driver both ok)
2.emergency tube,use the LI battary to offer power. 1 hour, 2hours and some longer last time can be ok, we all can design for you.
3.emergency tube+voice&PIR sensor,,
not only can replace the emergency fluroscent tube
but also can have tube with sensor\'s function.
widely use in the parking place.
4.tube with voice&PIR sensor,
when people around 5-8m horizontal 120 °vertical 150 °,
or the voice up to 56±2db, it will light on.
5.tube compatible electronic ballast
6.led u tube 2ft
7.dimming tube
8.led fridge tube waterproof ip65：the beam angle can >320°
9.normal t8 tube ul cul csa 347V certified, internal/external driver both ok.
FY led fluorescent tube lighting advantages:
1.super optical benefits:
High brightness >100LM/w,80Ra,PFC>0.95,THD<10%, and high illumination up to70lux/3m height.
2.great material for excellent heat dissipation performance
our own mould: good looking outer design, deep strip ,easy for heat releasing Aluminum board and aluminum housing guarantee double heat releasing to avoid light depreciation and prolong lifespan>50.000hours .
3.100% safe driver design: isolated driver(internal and external available).
4. LM80 test report for Epistar 3528 led chip burn-in in 6000hrs , LM79 parameter test report for led tube
5. Strict quality control:72hrs burn-in test before shipment,low failure rate within 3‰. A series of testing like shaking test, low and high temperature test (-25°C~ 65°C),drop test from the height of 90mm in 8directions ,hipot test 1500V for 1 min and so on.
Tubes t8 lamp lighting UL/cUL certified specifications:
FY tube t8 led features:
Model:FY-T8-1200
Length:4ft
LEDs:288pcs
Input Volt:AC120-277V
Color Temprature:2700-7000K
Power:18W
Luminous Effciency:120lm/w
Luminous flux: 2200±5%LM
Beam Angle:120°
PFC：＞0.90
CRI：>75Ra
Certification:cUL UL VDE SAA offer
Driver: internalisolated driver/external driver both ok for us
Package:20pcs/export carton. 132*24*21cm for one carton
FOR FY TUBES:
120~277V tube is UL/cUl approval
Ul no.:E341041 for tube with internal driver
Ul No.:E359847 for tube with external driver
Ul No.:E341042 for internal driver
Ul No.:E353331 for external driver
you can check here:www.ul.com/database for details.
277V~347V tube is CSA approval
csa Master control no. :252050
you can check here:https://directories.csa-international.org/
2012 NEW FRESH ITEMS LED TUBES LIGHTING FOR YOU CHOOSING:
1.2pcs tube with one external driver.(4pcs tube with one external driver both ok)
2.emergency tube,use the LI battary to offer power. 1 hour, 2hours and some longer last time can be ok, we all can design for you.
3.emergency tube+voice&PIR sensor,,
not only can replace the emergency fluroscent tube
but also can have tube with sensor\'s function.
widely use in the parking place.
4.tube with voice&PIR sensor,
when people around 5-8m horizontal 120 °vertical 150 °,
or the voice up to 56±2db, it will light on.
5.tube compatible electronic ballast
6.led u tube 2ft
7.dimming tube
8.led fridge tube waterproof ip65：the beam angle can >320°
9.normal t8 tube ul cul csa 347V certified, internal/external driver both ok.
FY led fluorescent tube lighting advantages:
1.super optical benefits:
High brightness >100LM/w,80Ra,PFC>0.95,THD<10%, and high illumination up to70lux/3m height.
2.great material for excellent heat dissipation performance
our own mould: good looking outer design, deep strip ,easy for heat releasing Aluminum board and aluminum housing guarantee double heat releasing to avoid light depreciation and prolong lifespan>50.000hours .
3.100% safe driver design: isolated driver(internal and external available).
4. LM80 test report for Epistar 3528 led chip burn-in in 6000hrs , LM79 parameter test report for led tube
5. Strict quality control:72hrs burn-in test before shipment,low failure rate within 3‰. A series of testing like shaking test, low and high temperature test (-25°C~ 65°C),drop test from the height of 90mm in 8directions ,hipot test 1500V for 1 min and so on.
- 24hrs for burn-in light source
- 24hrs-48hrs for burn-in drivers and shorts
- 48hrs-72hrs for burn-in leakage
- 48hrs-72hrs for burn-in IC,compacitor and resistor
Tubes t8 lamp lighting UL/cUL certified specifications:
Additional Information
| Payment Terms | L/C, T/T, Western Union |
|---|---|
| Minimum Order | 20 unit |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | NO |
| Delivery Details | 1.one piece in a box, 20pcs in a export carton2.we can pack as your requirment |
| FOB Port | Shenzhen |
| Loading Info | BY express, 3-5working daysby air, 5-7woking daysby boat: 20-23 working days |
| Packing Info | 20pcs in a export cartonSize of the carton FYI:2ft:72x24x20cm3ft:105x25x24cm4ft:132x24x21cm5ft:160x23x20cm6ft:195x25x24cm8ft:253x24x21cm |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Hong Kong/ Macao/ Taiwan, Japan & Korea, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
