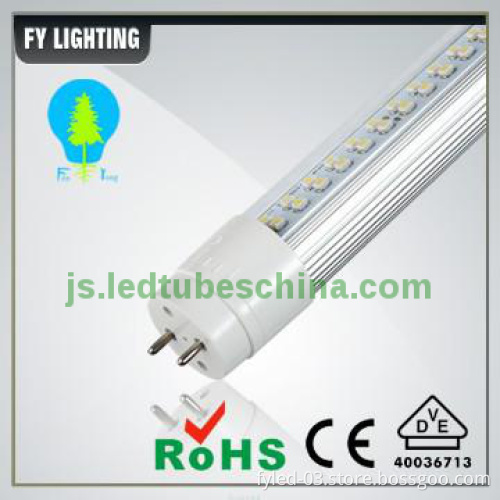

T8 2.4m LED Lamp UL/cUL Approved
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Voltage | AC120-277V |
|---|---|
| Isolated driver | Internal |
| PF | >0.9 |
| Lamp Type | 8ft LED Tube |
| Wattage | 36W |
| Life | >50,000hrs |
| Power | 36W |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Length | 120cm |
| Lamp Base | G13 |
| Color Tones | Cool Color |
| Voltage | 90-260V |
| Illuminant | SMD |
Detail Description
UL CUL T8 2.4m LED Lamp
Specification:
Specification:
| Model No. | FY-T8-2400 |
| Wattage | 36W |
| Voltage | AC120-277V |
| Frequency | 50-60Hz |
| PF | >0.9 |
| THD | <20% |
| CRI | >75Ra |
| LEDs | 576 |
| Lumens | 3600Lm |
| Beam Angle | 120degrees |
| CCT | 2700-70000K |
| PC cover | Clear/Frosted/Ribbed |
Details advantage for FY LED Lamp:
1.super optical benefits:
High brightness 120LM/w,80Ra,PFC>0.95,THD<20%, and high illumination up to 70lux/3m height.
2.great material to make sure excellent heat dissipation performance
our own mould: good looking outer design, deep strip ,easy for heat releasing Aluminum board and aluminum housing guarantee double heat releasing to avoid light depreciation and prolong lifespan>50.000hours .
3. safe driver design: isolated driver (internal and external available).
4. LM80 test report for Epistar 3528 led chip burn-in in 6000hrs , LM79 parameter test report for led tube
5. Strict quality control:72hrs burn-in test before shipment,low failure rate within 3‰. A series of testing like shaking test, low and high temperature test (-25°C~ 65°C),drop test from the height of 90mm in 8directions ,hipot test 1500V for 1 min and so on.
24hrs for burn-in light source
24hrs-48hrs for burn-in drivers and shorts
48hrs-72hrs for burn-in leakage
48hrs-72hrs for burn-in IC,compacitor and resistor
6. 3/5 years warranty , under the warranty ,less than35% depreciation of light output compared with initial EXW lumens, we are responsible for our clients
1.super optical benefits:
High brightness 120LM/w,80Ra,PFC>0.95,THD<20%, and high illumination up to 70lux/3m height.
2.great material to make sure excellent heat dissipation performance
our own mould: good looking outer design, deep strip ,easy for heat releasing Aluminum board and aluminum housing guarantee double heat releasing to avoid light depreciation and prolong lifespan>50.000hours .
3. safe driver design: isolated driver (internal and external available).
4. LM80 test report for Epistar 3528 led chip burn-in in 6000hrs , LM79 parameter test report for led tube
5. Strict quality control:72hrs burn-in test before shipment,low failure rate within 3‰. A series of testing like shaking test, low and high temperature test (-25°C~ 65°C),drop test from the height of 90mm in 8directions ,hipot test 1500V for 1 min and so on.
24hrs for burn-in light source
24hrs-48hrs for burn-in drivers and shorts
48hrs-72hrs for burn-in leakage
48hrs-72hrs for burn-in IC,compacitor and resistor
6. 3/5 years warranty , under the warranty ,less than35% depreciation of light output compared with initial EXW lumens, we are responsible for our clients
Additional Information
| Payment Terms | T/T, Western Union |
|---|---|
| Minimum Order | 1PC |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | Sampe order:5-7daysMass production:15days |
| FOB Port | Shenzhen |
| Loading Info | By Express , by air or sea |
| Packing Info | 20pcs/carton2foot: 71x25x21cm3foot: 101x25x21cm/carton4foot: 132x25x21cm/carton5foot: 161x25x21cm/carton |
| Target Market(s) | North America, Oceania, Eastern Europe, Western & Southern Europe, Northern Europe |
