Sonic and PIR Sensor LED tube light T8 2ft
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| input voltage | 120-277V 50/60Hz |
|---|---|
| working temperature | -20~+45 degree |
| PFC | >0.9 |
| Luminious flux | 1080lm |
| certification | UL/cUL,DLC,LM79,LM80(leds) |
| Life | >50,000hrs |
| Power | 9w |
| Voltage | 220-240V |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Lamp Base | G13 |
| Length | 60cm |
| Color Tones | Cool Color |
| Illuminant | SMD |
Detail Description

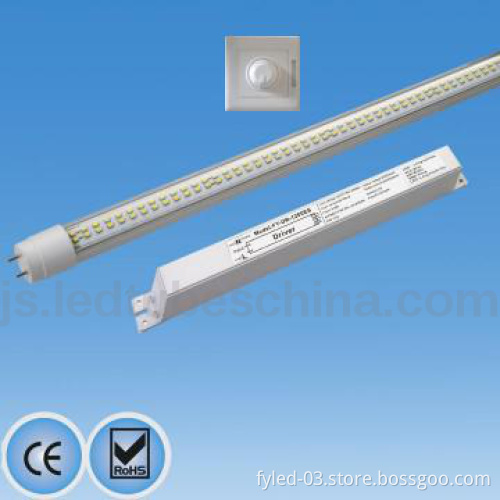

Sonic PIR Motion Sensor led tubes
specification ：
Advantage:
1. High luminous efficiency up to 110lm per watt, and high illumination up to 75lux/3m height
2. Top quality material for excellent heat dissipation performance
3. Beautiful appearance, thick heat sink, good for heat releasing
Aluminum board and aluminum housing guarantee double heat releasing avoid light depreciation and prolong
Lifespan up to 50,000 hours
4. Top safety: Isolated driver
5. LM80 LM79 test report, IES file
Strict quality control, ISO9001-2008 certificate
Strict quality control: 72hrs burn-in test before shipment, low failure rate within 3‰
A series of testing like shaking test, low and high temperature test (-20°C~ 65 °C)
Drop test from the height of 1.2m in 6 directions, hi-pot test 1500V for 1 min and so on.
Burn-in test
1. 24hrs for burn-in light source
2. 24hrs-48hrs for burn-in drivers and shorts
3. 48hrs-72hrs for burn-in leakage
4 . 48hrs-72hrs for burn-in IC, compacitor and resistor
specification ：
| Model |
Output Wattage |
Luminous Flux |
LED Q’ ty |
Product Size*(mm) |
Net Weight |
PC Cover |
| FY-T8-600ES | 9W | 1080lm | 144pcs | 26*L588 | 240g |
Clear Frosted Striped |
| FY-T8-900ES | 14W | 1800lm | 252pcs | 26*L898 | 340g | |
| FY-T8-1200EMS | 15W | 1800lm | 288pcs | 26*L1198 | 420g | |
| FY-T8-1200ES | 18W | 2160lm | 288pcs | 26*L1198 | 420g | |
| FY-T8-1500ES |
22W |
2640lm | 360pcs | 26*L1498 | 520g | |
| FY-T8-1800ES | 26W | 3120lm | 456pcs | 26*L1798 | 710g | |
| FY-T8-2400ES | 36W | 4320lm | 576pcs | 26*L2398 | 810 |
Advantage:
1. High luminous efficiency up to 110lm per watt, and high illumination up to 75lux/3m height
2. Top quality material for excellent heat dissipation performance
3. Beautiful appearance, thick heat sink, good for heat releasing
Aluminum board and aluminum housing guarantee double heat releasing avoid light depreciation and prolong
Lifespan up to 50,000 hours
4. Top safety: Isolated driver
5. LM80 LM79 test report, IES file
Strict quality control, ISO9001-2008 certificate
Strict quality control: 72hrs burn-in test before shipment, low failure rate within 3‰
A series of testing like shaking test, low and high temperature test (-20°C~ 65 °C)
Drop test from the height of 1.2m in 6 directions, hi-pot test 1500V for 1 min and so on.
Burn-in test
1. 24hrs for burn-in light source
2. 24hrs-48hrs for burn-in drivers and shorts
3. 48hrs-72hrs for burn-in leakage
4 . 48hrs-72hrs for burn-in IC, compacitor and resistor
Additional Information
| Payment Terms | T/T, Western Union |
|---|---|
| Minimum Order | 1pcs |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | Sample less100pcs:5-7 days after receiving payment 5,000pcs:20days after receiving deposit20,000pcs:30days after receiving deposit |
| FOB Port | Guangzhou,Hong Kong,Shenzhen |
| Loading Info | By Express: UPS, DHL, FEDEX, TNT; By Air; By Sea; |
| Packing Info | 1. By pallet:20pcs per carton, carton size for 4ft:132*25*21cm;2. By paper tube,20pcs per carton, size for 4ft:135*26*23cm. |
| Target Market(s) | Eastern Europe, North America, Northern Europe, Western & Southern Europe |
