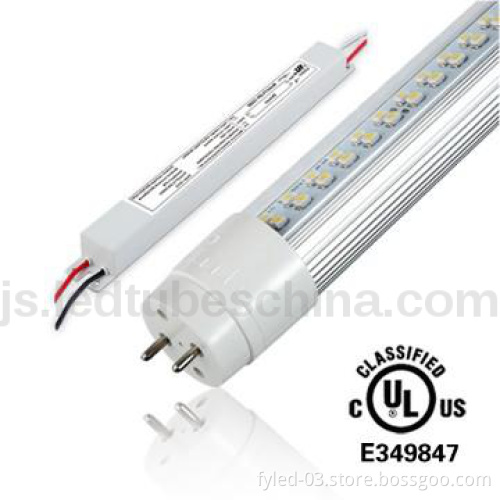

T8 2ft led tube light External Driver UL/cUL CE RoHS approved
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| voltage | 120~270V AC |
|---|---|
| driver | external |
| Power Factory | >0.9 |
| end caps | frosted/clear/striped |
| Temperature Rise | less than 25 degree |
| Power | 9W |
| Life | 50,000h |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Lamp Base | G13 |
| Length | 60cm |
| Color Tones | Cool Color |
| Voltage | 90-260V |
| Illuminant | LEDs |
Detail Description
| Model No. | FY-T8-600E |
| Certificate | UL/cUL CE RoHS |
| Input Voltage | 120~277, 50/60Hz |
| Power Factory | 0.9 |
| Output Wattage | 9W |
| LED Quantity | 144pcs |
| Luminious Flux | 900LM |
| Luminaire efficiency | 0.9 |
| Luminious efficiency | >100lm/w |
| Working Temperature | (-20～50°) |
| Power Factor | 0.9 |
| Product Size | 2ft / D26*L600mm |
| Color Temperature | Warm White(2700-3500K) / NW(4000-4500k) / CW(5000-7000K) |
| Net Weight | 520g |
| Color Index(Ra) | 70~80 |
| Beam Angle | 120° |
| End Cap | G13 /FA8/R17D/ Rotatable |
| Power Supply | External Driver |
| PC Cover | Clear / Frosted/Ribbed |
| Housing(Crust) | Aluminium Board + Aluminium Housing |
| Lifespan | 50,000 hours |
| Warranty | 3 Years |
| Model | Length | Chips | LED Q’ ty |
Voltage (V) |
Power (W) |
Lumens |
PFC |
THD |
| FY-T8-600E | 600mm | Epsitar3528 | 144pcs | 120~270V | 9 | 1000±10% | >0.95 | <20% |
| FY-T8-900E | 900mm | Epsitar3528 | 252pcs | 120~270V | 14 | 1600±10% | >0.95 | <20% |
| FY-T8-1200EM | 1200mm | Epsitar3528 | 288pcs | 120~270V | 15 | 1680±10% | >0.95 | <20% |
| FY-T8-1200E | 1200mm | Epsitar3528 | 288pcs | 120~270V | 18 | 2000±10% | >0.95 | <20% |
| FY-T8-1500E | 1500mm | Epsitar3528 | 360pcs | 120~270V | 22 | 2450±10% | >0.95 | <20% |
| FY-T8-1800E | 1800mm | Epsitar3528 | 456pcs | 120~270V | 16 | 2900±10% | >0.95 | <20% |
| FY-T8-2400E | 2400mm | Epsitar3528 | 576pcs | 120~270V | 36 | 4000±10% | >0.95 | <20% |
Advantage:
1. High luminous efficiency up to 110lm per watt , and high illumination up to 75lux/3m height
2. Top quality material for excellent heat dissipation performance
3. Beautiful appearance, thick heat sink, good for heat releasing
Aluminum board and aluminum housing guarantee double heat releasing avoid light depreciation and prolong
lifespan up to 50,000 hours
4. Top safety: Isolated driver
5. LM80 LM79 test report, IES file
Strict quality control , ISO9001-2008 certificate
Strict quality control: 72hrs burn-in test before shipment,low failure rate within 3‰
A series of testing like shaking test, low and high temperature test (-20°C~ 65 °C)
drop test from the height of 1.2m in 6 directions, hi-pot test 1500V for 1 min and so on.
Burn-in test
1. 24hrs for burn-in light source
2. 24hrs-48hrs for burn-in drivers and shorts
3. 48hrs-72hrs for burn-in leakage
4 . 48hrs-72hrs for burn-in IC,compacitor and resistor
Additional Information
| Payment Terms | L/C, T/T, Western Union, Others |
|---|---|
| Minimum Order | 1pcs |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | 7days for samples15~20days for big order |
| FOB Port | Shenzhen |
| Loading Info | by air by sea |
| Packing Info | 20pcs/carton |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
