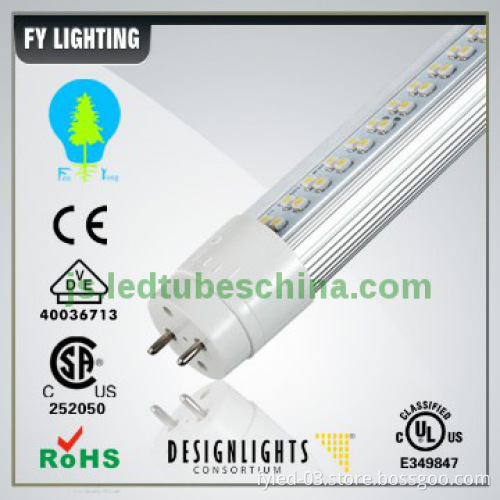

t8 led tube 2400mm with UL cUL approval
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Size | 2400mm/8ft |
|---|---|
| Voltage | 100-277V.277-347v |
| THD | <20% |
| PF | >0.95 |
| Base | G13/Rotating end cap/Fa8/R17d |
| Life | 50,000hrs |
| Power | 36w |
| Length | 240cm |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Lamp Base | G13 |
| Color Tones | Natural White |
| Voltage | 90-260V |
| Illuminant | SMD |
Detail Description
t8 led tube 2400mm with UL cUL approval
Specification of 4ft led tube:
| Model | FY-T8-2400 |
| Input Voltage | 100~277VAC.277-347v,50/60Hz |
| Output Wattage | 18W |
| LED Elements | 288 LEDs |
| Luminious Flux | 4000lm |
| Working Temperature | -20~45 degree |
| Temperature Rise | less than 25 degrree |
| THD | <20% |
| Power Factor | >0.9 |
| Product Size | 26mm*L2380mm |
| Power supply | External driver |
| End cap | G13/G13 rotating / Fa8 single pin / R17d |
| Certificates | DLC,CE,Rohs,UL/CUL,IES,LM79,LM80(leds) |
| Warranty | 3 or 5 years warranty |
Advantage:
1. High luminous efficiency up to 110lm per watt , and high illumination up to 75lux/3m height
2. Top quality material for excellent heat dissipation performance
3. Beautiful appearance, thick heat sink, good for heat releasing
Aluminum board and aluminum housing guarantee double heat releasing avoid light depreciation and prolong
lifespan up to 50,000 hours
4. Top safety: Isolated driver
5. LM80 LM79 test report, IES file
Strict quality control , ISO9001-2008 certificate
Strict quality control: 72hrs burn-in test before shipment,low failure rate within 3‰
A series of testing like shaking test, low and high temperature test (-20°C~ 65 °C)
drop test from the height of 1.2m in 6 directions, hi-pot test 1500V for 1 min and so on.
Burn-in test
1. 24hrs for burn-in light source
2. 24hrs-48hrs for burn-in drivers and shorts
3. 48hrs-72hrs for burn-in leakage
4 . 48hrs-72hrs for burn-in IC,compacitor and resistor
Application,
More about FY lighting t8 led tube,please don\'t hesitate to inquiry now.
Additional Information
| Payment Terms | L/C, T/T, Western Union, Others |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | t8 led tube 2400mm with UL cUL approvall7days for samples15~20days for big order |
| FOB Port | Guangzhou,Hong Kong,Shenzhen |
| Loading Info | t8 led tube 2400mm with UL cUL approvalBy Express: UPS, DHL, FEDEX, TNT; By Air; By Sea; |
| Packing Info | t8 led tube 2400mm with UL cUL approval4ft led tube,20pcs/carton.132*25*25cm/carton |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
