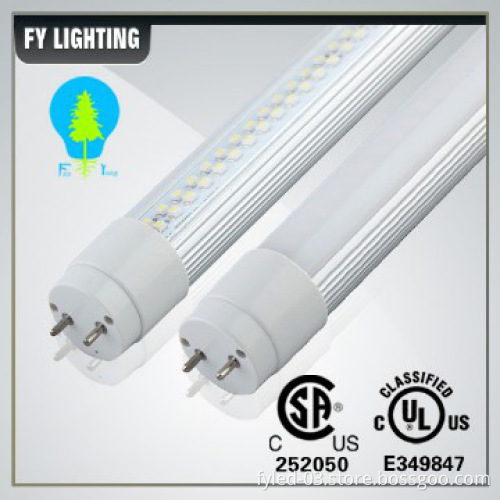

t8 LED Tube Lights UL/cUL External Driver
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| PC cover | frosted/clear/striped |
|---|---|
| Power Factory | >0.9 |
| Temperature Rise | less than 25 degree |
| voltage | 120~270V AC |
| driver | external |
| Life | 50,000h |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Length | 120cm |
| Lamp Base | G13 |
| Color Tones | Cool Color |
| Voltage | 90-260V |
| Power | 18W |
| Illuminant | LEDs |
Detail Description
UL No.E349847
Specification:
| Model No. | FY-T8-1200ES |
| Certificate | UL/cUL CE RoHS |
| Input Voltage | 120~277, 50/60Hz |
| Power Factory | 0.9 |
| Output Wattage | 18W |
| LED Quantity | 288pcs |
| Luminious Flux | 2160LM |
| Luminaire efficiency | 0.9 |
| Luminious efficiency | >110lm/w |
| Working Temperature | (-20～50°) |
| Power Factor | 0.9 |
| Product Size | 4ft / D26*L1198mm |
| Color Temperature | Warm White(2700-3500K) / NW(4000-4500k) / CW(5000-7000K) |
| Net Weight | 420g |
| Color Index(Ra) | 70~80 |
| Beam Angle | 120° |
| End Cap | G13 /FA8/R17D/ Rotatable |
| Power Supply | External Driver |
| PC Cover | Clear / Frosted/Ribbed |
| Housing(Crust) | Aluminium Board + Aluminium Housing |
| Lifespan | 50,000 hours |
| Warranty | 3 Years |
| Model | Length | Chips | LED Q’ ty |
Voltage (V) |
Power (W) |
Lumens |
PFC |
THD |
| FY-T8-600E | 600mm | Epsitar3528 | 144pcs | 120~270V | 9 | 1000±10% | >0.95 | <20% |
| FY-T8-900E | 900mm | Epsitar3528 | 252pcs | 120~270V | 14 | 1600±10% | >0.95 | <20% |
| FY-T8-1200EM | 1200mm | Epsitar3528 | 288pcs | 120~270V | 15 | 1680±10% | >0.95 | <20% |
| FY-T8-1200E | 1200mm | Epsitar3528 | 288pcs | 120~270V | 18 | 2000±10% | >0.95 | <20% |
| FY-T8-1500E | 1500mm | Epsitar3528 | 360pcs | 120~270V | 22 | 2450±10% | >0.95 | <20% |
| FY-T8-1800E | 1800mm | Epsitar3528 | 456pcs | 120~270V | 16 | 2900±10% | >0.95 | <20% |
| FY-T8-2400E | 2400mm | Epsitar3528 | 576pcs | 120~270V | 36 | 4000±10% | >0.95 | <20% |
Advantage:
1. High luminous efficiency up to 110lm per watt , and high illumination up to 75lux/3m height
2. Top quality material for excellent heat dissipation performance
3. Beautiful appearance, thick heat sink, good for heat releasing
Aluminum board and aluminum housing guarantee double heat releasing avoid light depreciation and prolong
lifespan up to 50,000 hours
4. Top safety: Isolated driver
5. LM80 LM79 test report, IES file
Strict quality control , ISO9001-2008 certificate
Strict quality control: 72hrs burn-in test before shipment,low failure rate within 3‰
A series of testing like shaking test, low and high temperature test (-20°C~ 65 °C)
drop test from the height of 1.2m in 6 directions, hi-pot test 1500V for 1 min and so on.
Burn-in test
1. 24hrs for burn-in light source
2. 24hrs-48hrs for burn-in drivers and shorts
3. 48hrs-72hrs for burn-in leakage
4 . 48hrs-72hrs for burn-in IC,compacitor and resistor
Additional Information
| Payment Terms | T/T, Western Union, Money Order |
|---|---|
| Minimum Order | 1pcs |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | Sample less100pcs:5-7 days after receiving payment 5,000pcs:20days after receiving deposit20,000pcs:30days after receiving deposit |
| FOB Port | Shenzhen |
| Loading Info | By Express :UPS, DHL, FEDEX, TNT; (3-5working days)By Air;(5-7woking days)By Sea;( 20-23 working dayswe can do as your request. |
| Packing Info | 1.By pallet:20pcs per carton, carton size for 4ft:132*25*21cm;2.By paper tube,20pcs per carton, size for 4ft:135*26*23cm. |
| Target Market(s) | North America, Eastern Europe, Western & Southern Europe, Northern Europe |
