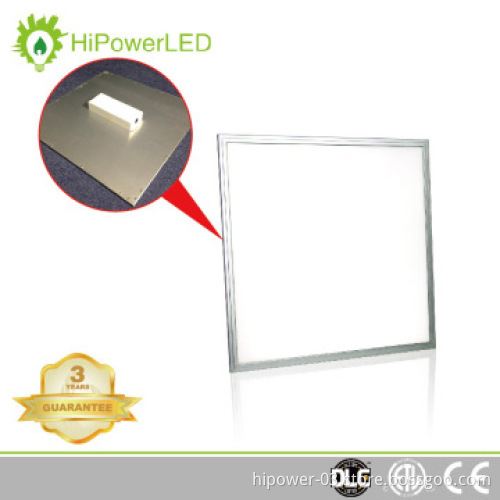

Hot! ETL DLC 600x600 30W LED Panel Light
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| certificate | ETL/DLC |
|---|---|
| Warranty | 5 years |
| LED type | 2835 SMD |
| Wattage | 30W |
| CCT range | 2800-5500K |
| Life (Hours) | 50000hours |
| Voltage | 90-260V |
| Material | Aluminum, PMMA |
| Application | Airport, Car Park, Church, Cinema, Gallery, Garage, Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room |
| Light Source | LED |
Detail Description
High quality ETL & DLC approved 600*600MM 30W LED panel light,popular in North America market. No dark spot, Ultra thin, Ultra bright.
Description:
Our LED panel light is one of our hot sell LED products with Ultra-bright SMD2835 LED chip with the
features:
High quality Aluminum housing maximized its heat dissipation system
Superior Light Guide Plate making the light more even and unform.
Constant LED driver using only high quality componets making the life time of the whole fixture long time.
Uniform light,no flickering,soft-light,no harm to eyes,eco-friendly
Ultra-thin,easy to instal,long time service
ETL and DLC certifications
5 years warranty
Parameter:
| Model No.: | SPS12-PL600X600D-168CW/NW/WW-V1-ETL |
| Power: | 30W |
| CCT: | 2800-5500K |
| Input Voltage: | AC100-277V |
| Beam Angle: | 110degree |
| CRI: | Ra>80 |
| Luminous Flux: | 2500LM |
| Frequency Range: | 50HZ-60HZ |
| Total Harmonic Distortion: | <=10% |
| Power Factor: | >0.95 |
| Life-Span: | 50000H |
| Working Temperature: | -40 Celsius-55 Celsius |
| Storage Temperature: | -25 Celsius-65 Celsius |
| Dimension | 595*595*9.7mm(without driver box) |
| lighting source | SMD2835 |
Size:
600*600mm LED panel light, 9.7mm thickness, if including driver box, the thickness is 51mm.
Installation:
LED panel light 4 methods of installation:
A. suspended mounted-Use Φ1.2x1000mm stainless steel wire+base+thread lock to mount the panel suspended from the ceiling
B. ceiling mounted-Use screws supplied to screw mount the panel to the ceiling
C. recessed mounted-Just mount the panel stuck in the troffer of the ceiling
D. recessed mounted-Use spring holder to mount the panel recessed in the ceiling
Application:
LED panel light is Using popularly in office building,supermarkets,hotels lobbies,Airport or any other residential lighting.
Below is the LED panel light using in airport:
Company Show:
Aging Room:
We are having full-automatic aging testing shelf:
Warranty:
5 Years warranty.During warranty,if any damage happened because of product itself, we will take full responsibility.
Our products:
main products includes:high bay, flood light, street light, LED panel light, downlight, wall washer, bulb, spotlight,tube
Contact information:
Shenzhen Hipower Optoelectronic Co., Ltd.
Website: www.hipowerled.com
Additional Information
| Payment Terms | L/C, T/T, Western Union |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | 7 ~ 10 days for samples, 15 ~ 20 days for big quantity. |
| FOB Port | Shenzhen |
| Loading Info | by air,by sea ,by express |
| Packing Info | Packing Details:1. Net Weight:3.60 kg2. Outer ctn size:665*660*250 mm3. Q\'ty per ctn:5 pcs4. G.W per ctn:20 kg |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
