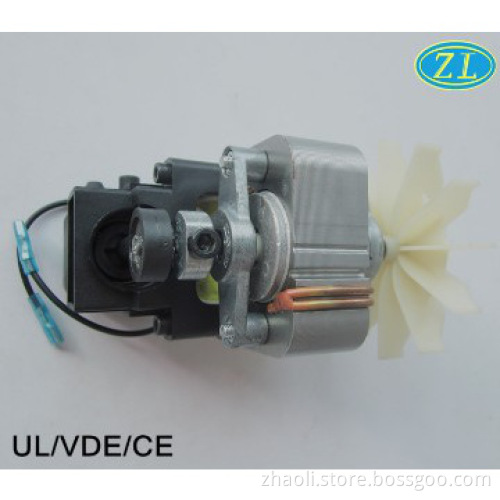

Nebulizer motor Air Compressor Nebulizer Motor YJ62-25(manufaturer)

Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.

Product General Performance Parameters:
 Voltage----------------------100-240VAC
 Frequency-------------------50/60HZ
 Power------------------------5-100W
 Insulation Class----------- -A/E/B/F/H
 Noise--------------------------less than 43Db(A)
 Life----------------------------5000-10000Hours
 Core Thickness---------------8-40mm
 Shaft Diameter(mm)---------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35

Drawing:


Characteristics:
     Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.

Application:

      Nebulizer, Vacuum pump, Air pump



Delivery terms

1,T/T in advance will be our popular payment terms.

2,We\'d like to send you some samples which is close to your specification for testing.

3,We have detailed specifications. If you are interested in it, please write to me or talk me on TM.



About us:

    We are factory located in Shenzhen.
