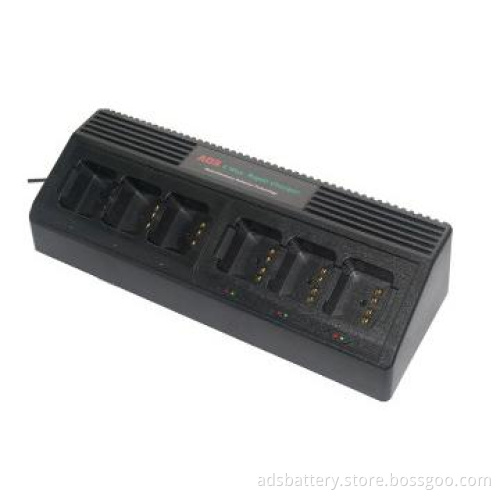

Hot &New Six Way Rapid Charger for Two Way Radio Battery

Specification:
1. Battery Type: Automatic Selection   NI-MH (3.6V, 7.2V, 9.6V, 12.0V);  LI-ION(3.7V, 7.4V)
2. Power Input: 100-240VAC, 12-24VDC
3, Charging Current: 1000mA(max.)
4, Safety: CE, UL RoHS, FCC
5, Housing: Black, High-impact Plastic PC


Charger Cup Selection List:
Cup No.: ADSUC-11M
Fits with: Motorola EP450, CP150, CP200, CP140, CP160, CP180, CP040, PR400, GP3688 Batteries etc.

Cup No.: ADSUC-12M
Fits with: Motorola GP300, GP88, GTX Batteries etc.

Cup No.: ADSUC-13M
Fits with: Motorola HT1000, MT2000, MTS2000, GP900, GP1200, MTX8000, MTX9000, MTX838, MTXLS, BP3, BP5, BP7 Batteries etc.

Cup No.: ADSUC-14M
Fits with: Insert for Motorola PRO5150, PRO7150, PRO9150, HT750, HT1250, HT1550, GP320, GP340, GP360, GP380, GP328, GP328-Plus, GP580, GP140, GP640. GP680,
                GP1280 Batteries etc.

Cup No.: ADSUC-11K
Fits with: Kenwood KNB14, KNB15, KNB20N, KNB16A, KNB17A, KNB21N ,KNB22N, PB43N Batteries etc.

Cup No.: ADSUC-12K
Fits with: Kenwood KNB33L Battery etc.

Cup No.: ADSUC-18K
Fits with: Kenwood KNB25, KNB26N, KNB35L Batteries etc.

Cup No.: ADSUC-19K
Fits with: Kenwood KNB29, KNB26N Batteries etc.

Cup No.: ADSUC-11I
Fits with: Icom BP209, BP210 Batteries etc.

Cup No.: ADSUC-12I
Fits with: Icom BP227 Battery etc.

Cup No.: ADSUC-18I
Fits with: Icom BP195, BP196 Batteries etc.

Cup No.: ADSUC-19I
Fits with: Icom BP232, BP231 Batteries etc.

Cup No.: ADSUC-11Y
Fits with: Vertex FNB-V57 Battery etc.

Cup No.: ADSUC-12Y
Fits with: Vertex FNB-V67 FNB-V83 Battery etc.

Cup No.: ADSUC-11X
Fits with: Maxon MPA1200, QPA1200, ACC200 Batteries etc.

Cup No.: ADSUC-11U
Fits with: Uniden APX1105, APX1115 Batteries etc.

Cup No.: ADSUC-11T
Fits with: Tiat Orca 5000 series Batteries etc


The special operation feature of charger:

The charger can charge to wide range battery pack by CC (constant current) for Ni-MH/Ni-Cd battery pack, and CC-CV for Li-Ion battery pack.

Have qualification process before fast charge starting to each battery pack on temperature, over charged or discharged situation, only confirm it’s under the limits then the fast charge can start,
otherwise only trickle charge be present.
A  Wake-up function: To over-discharged battery pack, charger will export Top current to wake-up it in 5minutes, if battery pack voltage can recover in 5minutes, charger will get into fast
    charging immediately, otherwise only trickle current and keep this states until the battery pack be   removed, the indicator will shows abnormal status, the red LED flash.
B. To over-charged battery pack or full battery pack, fast charge will be forbid, only trickle charge current be present until battery pack be removed, Red LED flash at this situation
C. To over-high or over-low temperature battery pack, only trickle current be present until battery temperature drop to normal limits, then fast charge will begin, Red LED will charge from flash to solid “on”.
D. Battery chemical feature and voltage type recognizing function: During qualification process, charger will detect the code resistor or diode inside battery pack connecting with temperature sensing terminal to
     judge the battery pack chemical feature.


Other features:
A. Have 2 rectangles LED to indicate charging status, one Red LED and one Green LED, and the LED is high brightness type.
B. Have timer be set in software for back-up termination if -⊿V fail to be present on battery pack.
C. PCA will be varnished to provide moisture-proof on charger
D. Will consider bracket to cover the battery terminal from any outside short or electrical shock to human
E. Have good insulation spacing between high voltage input and low voltage output circuit.
