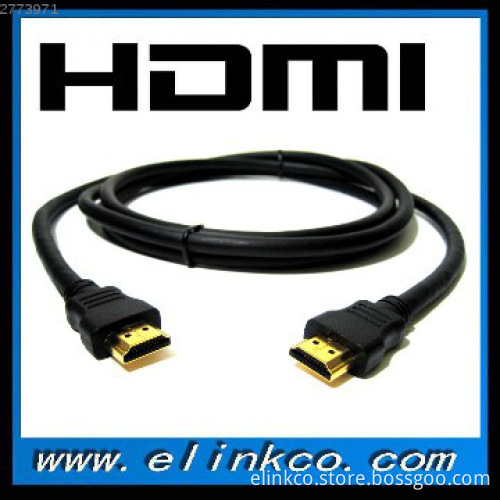

Black gold plug hdmi cable for HDTV Xbox PS3 supporting 3d 1080p ethernet

Item No: Elink  HD-1040

HDMI CABLE:

High Definition Multimedia Interface (HDMI) has become a popular choice for home theaters and PC entertainment. HDMI combines both digital video and audio into one cable. There are two options of HDMI cable that can be used with home entertainment: Standard HDMI and High Speed HDMI. Both cable types are available with Ethernet as an option. This will allow for the HDMI cable to be used for an Internet connection along with the video and audio. A \"Standard\" HDMI cable will support up to 1080i and 720p video standards while a \"High Speed\" HDMI cable will support 1080p, 4K, 3D and Deep Color. HDMI is also compatable with DVI and a person is able to have a cable with both connectors. This is useful for connecting PC\'s or laptops with HDMI ports to LCD monitors with DVI ports.





Structure

• Product Name: HDMI male to HDMI male cable with Gold-plated
• Place of Origin: China
• AWG: 19pin to 19pin, 28/30/26/24 (Optional)
• Plated: Gold/Nickel (Optional).
• Length: 1M to 15M(3FT to 50FT) or according to customer’s request.

• HDMI connectors are the new high definition standard for connecting HDMI equipped portable devices such as high definition camcorders.
• This cable will allow you to connect your portable device to the standard HDMI connector  found on most televisions and A/V receivers.
• specifications.
• HDMI cable is designed to deliver both clear high definition video.
• Connector Type: HDMI male to HDMI male
• Connector: Gold planted
• Shielding level: Triple
• Shielding type: EMI
• Supported Resolutions: 480i thru 1080p
• Bandwidth: Single Link
• HDMI Certified: Yes
• HDCP Compliant: Yes
• CEC Compliant: Yes
• ROHS Compliant: Yes
• UL Certified: Yes
• Supports SACD: Yes
• Supports TrueHD DTS-HD: Yes

• 100% Open and Short Test.
• Hi-pot: DC 300V, 10ms.
• Insulation Resistance: 10M Ohm Min.
• Contact Resistance: 5.0 Ohm Max.
• Working Temperature: -25ºC ~ +85ºC

• Premold: PE Low Density
• Insulator Material: High-Temperature thermoplastic (UL94V-0)
• Contact: Copper Alloy.
• Insertion Force: 44.1 N Max.
• Withdraw Force: 9.8 N Min.
