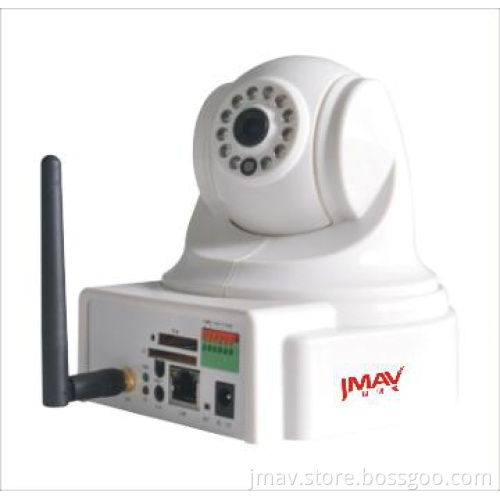

JM-803HDW constant speed Dome IP camera
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Special Features | Other |
|---|---|
| Type | IP Camera |
| Technology | Pan, Tilt |
| Image Sensor | CMOS |
| Style | Other |
Detail Description
Model
803HD-W
Main chipset
HISILION HI3507
Operation system
Embedded Linux
Video Compression
H.264 main profile level 3
Audio Compression
G.726/G.711
Image Sensor
1/3” 2.0 megapixel progressive scan CMOS
Video performance
Brightness,contrast,satration can be adjusted
CMOS performance
Automatic white balance(AWB),automatic gain control(AGC),automatic backlight compensation(ABLC)
Mini.Illumination
6 Lux
Video resolution
1280x720,640x480,320x240
IR distance
10m
Video frame rate
Main tream:1~30fps, Sub Stream:1~30fps, Video compression code rate: 32Kbits/S～4Mbits/S adjustable
Pan/Tilt Range
Horizontal：0～355°/Vertical：0～90°，Minimum horizontal angle：15°
Audio input
1ch line/Mic Input
Audio output
1ch line
Alarm I/O
1ch alarm I/O
Motion detection
4 respective regions
Control interface
1CH RS485
SD card backup
local,video and snapshot ,up to 64G
network protocol
TCP/IP，HTTP，TCP，ICMP，UDP，ARP, IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP and so on
network interface
10Base-T/100Base-TX Ethernet interface；
Wifi
WiFi 802.11b/g wireless Optional
Input power
DC 12V 2A
Consumption
10W
Working temperature
-10 ~ +55 ℃
Size(L×W×H)
Φ：132mm H：112mm
Weight
0.34kg
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 10 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| FOB Port | Shenzhen |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
